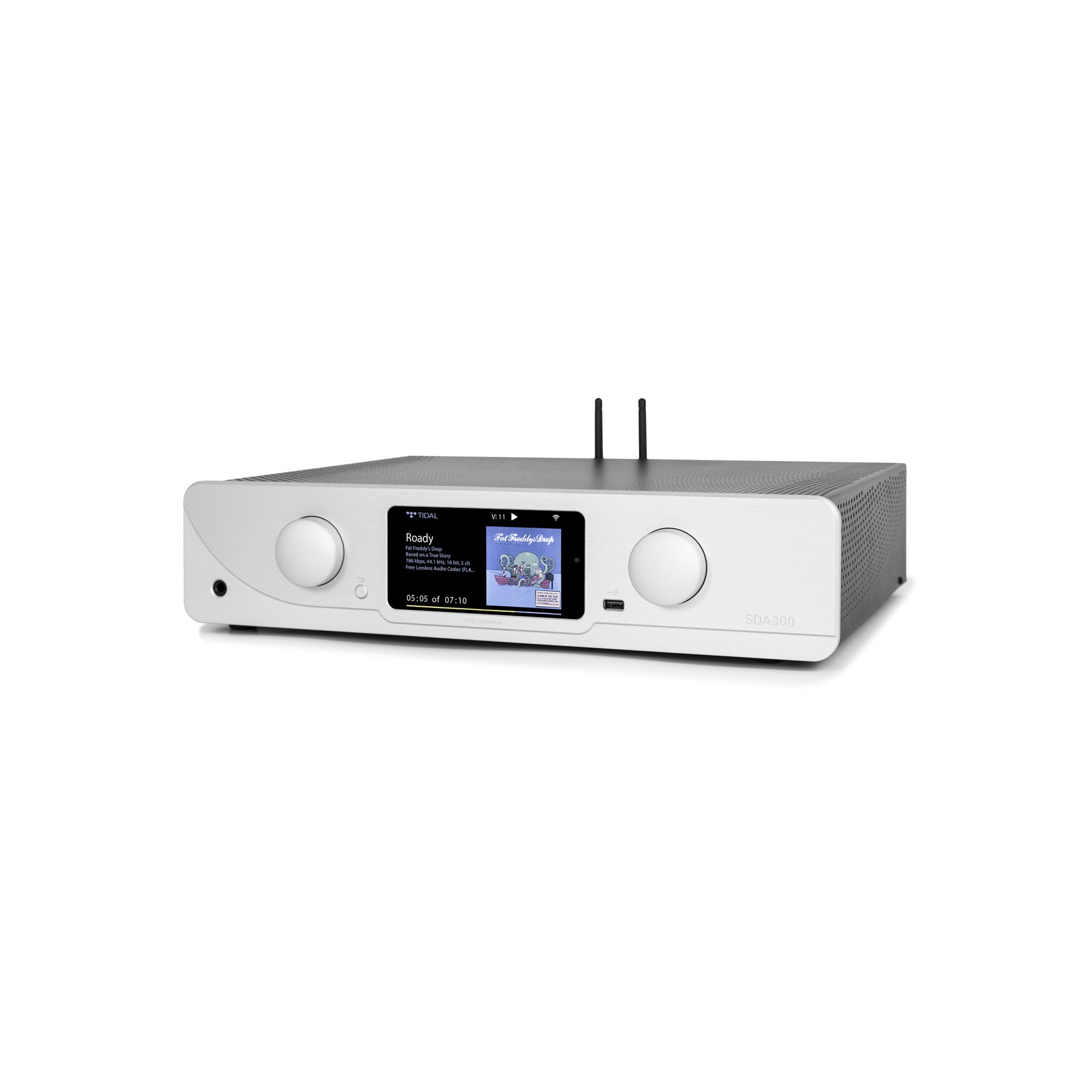

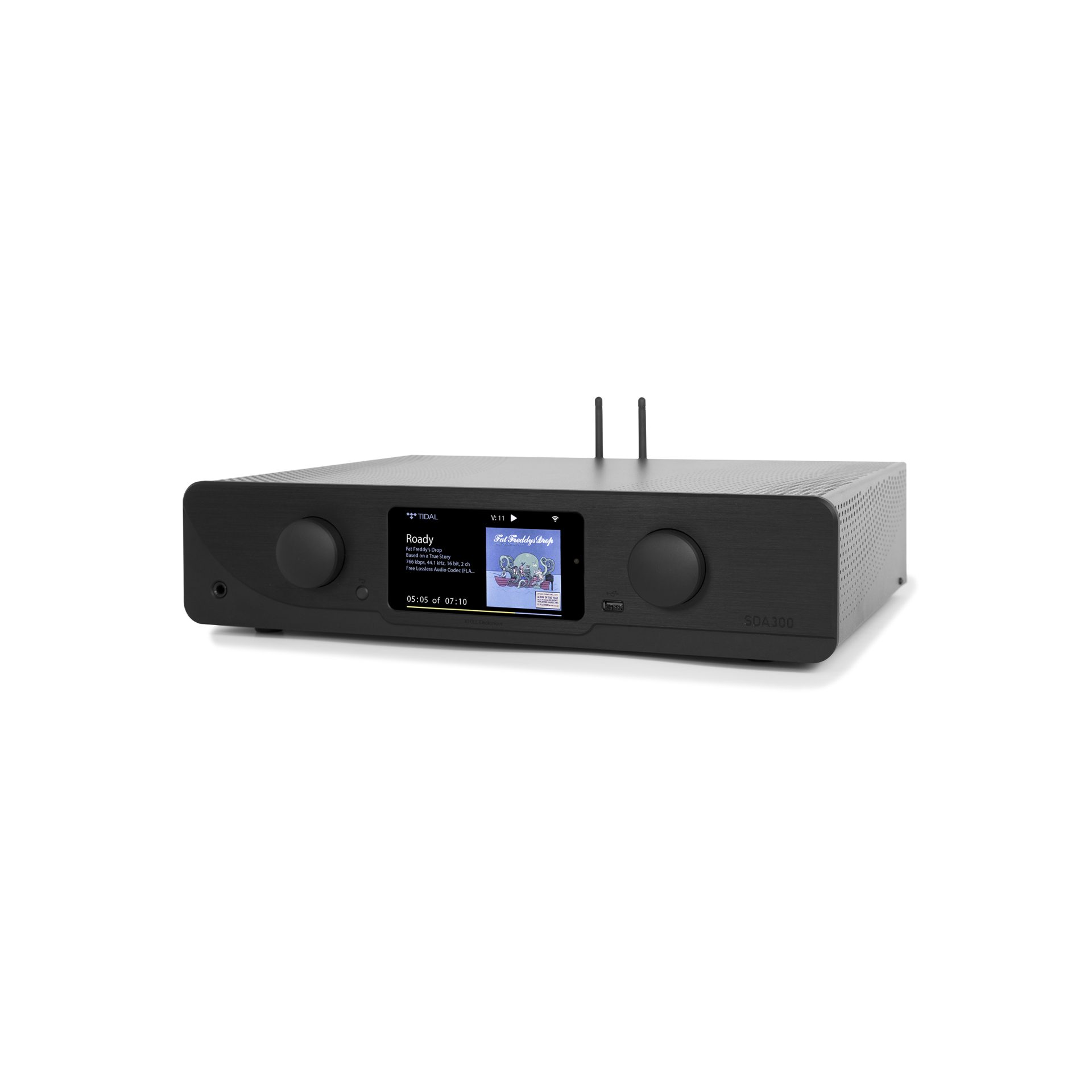

Atoll Electronique SDA300 Signature

De SDA300 Signature is ontworpen om de integriteit en complexiteit van muziekstructuren vloeiend te reproduceren. Hij biedt gratis toegang tot internetradio’s en stelt je in staat om live en in hoge kwaliteit af te spelen vanaf de belangrijkste streaming sites. Het staat open voor je hele netwerk en heeft een zeer complete connectiviteit. Het zet binaire code om in een analoog signaal met opvallend realisme. Als alles-in-één concept gaat hij nog verder door te functioneren als een complete muziekspeler en geïntegreerde versterker met behulp van het versterkergedeelte van de IN300.

Specificaties:

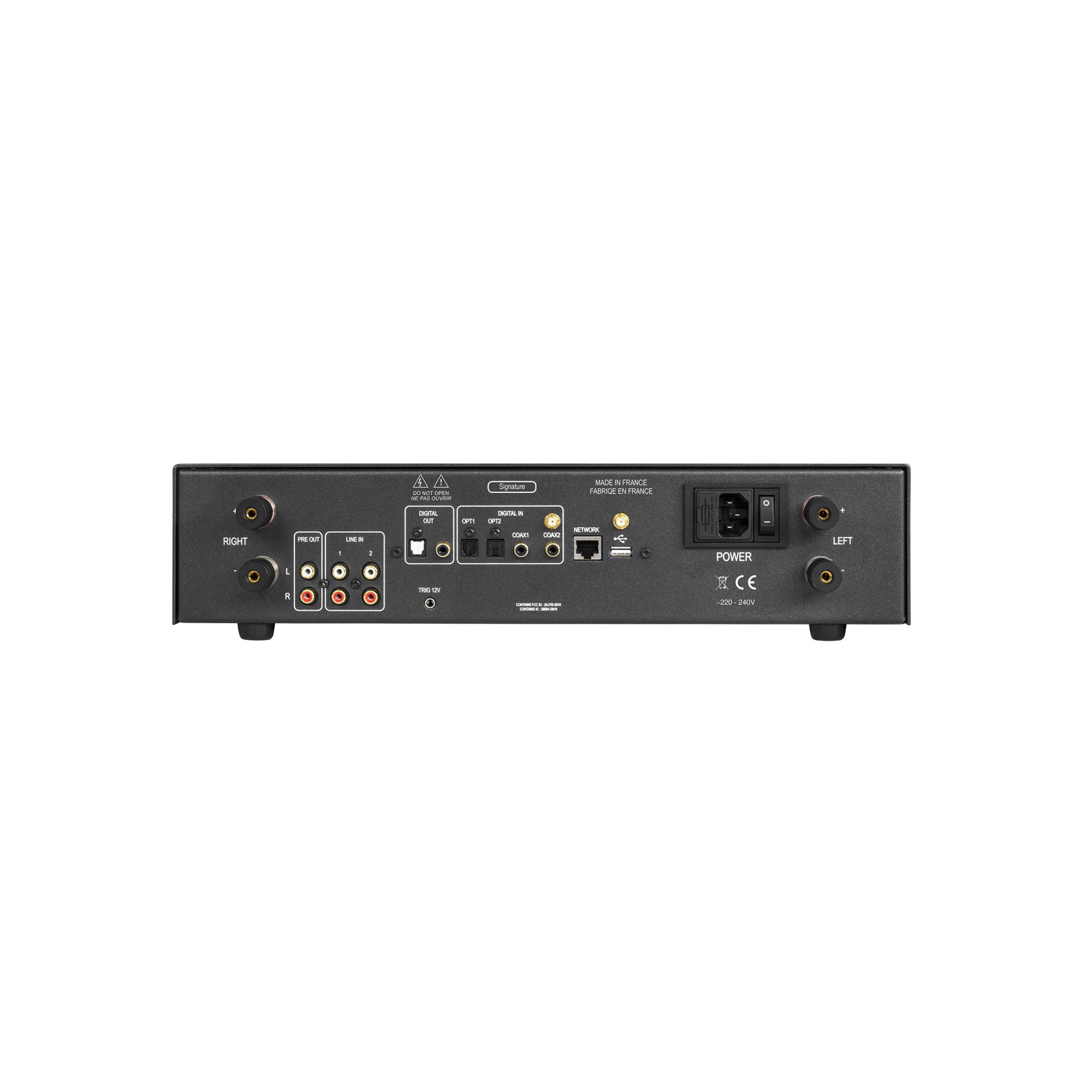

CONNECTIVITY

Inputs
2 Analog Inputs – 2 coaxial S/PDIF (24 bits/192 kHz PCM).
2 Toslink optical S/PDIF inputs (24 bits/192 kHz PCM).
2 USB-A inputs (1 front and 1 rear).

1 RJ45 network socket.
1 Bluetooth® receiver (antenna).

Outputs
Speakers.
1 Pre-out output.
1 Coaxial S/PDIF output.
1 S/PDIF optical Toslink.

1 Trigger output (12V).
1 Headphone output on the front panel (Ø 6,35 mm – 1/4″).
1 Wi-Fi antenna (802.11b/g/n).

TECHNICAL DATA

Power supply: 892,2 VA
Wrms/channel/8Ω: 2×150 W
Wrms/channel/4Ω: 2×280 W
Total of capacitors: 65 800 µF
Input impedance: 220 kΩ
Maximum input level: 3,5 Vrms
Distortion at 1 kHz: 0,05%
Bandwidth: 5 Hz – 150 kHz
Rising time: 1,3 µs
Sensitivity: 350 mV
Dynamic: 129 dB
Signal/Noise ratio: 129 dB
D/A converter: Burr-Brown PCM1792
Dimensions: 440×365×103 mm
Weight: 19 Kg

EXTERNAL CONTROLS

Playback of audio files present on the network (DLNA and UPnP compatible) in a wired or Wifi connection.
Display of names, tags, resolutions and album covers.
“Gapless” system (no cut between pieces).
Ability to create playlists.
External control is possible (by Qobuz, Audirvana, etc.) via the RTSP protocol.

ROON COMPATIBILITY​

ATOLL Signature network readers: MS120, ST200 Sig, ST300 Sig, SDA200 Sig and SDA300 Sig are now compatible with Roon. To benefit from this service, simply download the latest update online via the Settings/Software update menu. Then, go to Settings/Device ID menu and choose the device model you have from the list: ST200, MS120, SDA200…

STREAMING

You also have direct access from the application to these streaming services: Qobuz, Tidal, Tidal Connect, Deezer, Spotify, and HighResAudio.
During the first use, you will need to enter your username and password. Once your account is valid, you will be able to access all the services linked to your account.

INTERNET RADIO

This menu gives you access to the internet radio menu, i.e. approximately 100,000 internet radio stations as well as podcasts.

In WIFI or RJ45 connection, access to internet radios by the Airable system in high definition: choice of more than 100,000 stations, access to podcasts…
Display of station logos and other information: titles, artists, resolution, etc.
Possibility of adding each radio station to a “favorites” menu.

AUDIO

Discrete component preamp stages without negative feedback in pure Class A.
Analog volume management (switched resistors) that can be bypassed.
Specific power supply dedicated to the audio stages.
Specific power supply dedicated to the analog-digital audio converter.
MKP technology link and filter capacitors.
Burr-Brown PCM1792 digital to analog audio converter.

SUPPORTED FILE TYPES​
Files played: MQA, DSF, LPCM, FLAC, ALAC, AIFF, WMA, OGG, WAV, AAC, MP3.
Accepted resolutions: PCM up to 24 bits/192kHz and DSD64 & 128.
USB-A file systems: FAT32, NTFS, EXT2/3/4.
