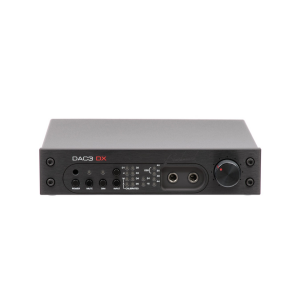

Benchmark Media DAC3 DX (NR)

The DAC3 DX is the DAC3 of choice for users who do not need analog inputs.
The DX is well suited to the needs of professional users and includes an XLR AES digital input. The DAC3 DX is the only DAC3 model that includes dual stereo output buses. The analog output buses can be independently set to fixed or variable gain. The DAC3 DX is also the only DAC3 available in a rack-mount version.

The DAC3 is Benchmark’s newest 2-channel D/A converter featuring the new ESS Technologies ES9028PRO converter chip. The DAC3 converter has lower THD and THD+N noise than Benchmark’s DAC2 converter.

Benchmark’s DAC1 and DAC2 D/A converter families have been the reference to which other converters have been compared. It is rare to find a converter review that does not draw comparisons to the DAC1 or the DAC2. Benchmark converters are in daily use at many of the world’s finest recording studios and mastering rooms. Benchmark converters are also enjoyed by thousands of audiophiles. Benchmark has raised the bar again … the DAC3 defines a new reference.

The DAC3 delivers outstanding musical detail and precise stereo imaging. It employs an advanced high-headroom digital filter design, and a high-sample-rate Asynchronous USB Audio interface. All inputs are fully isolated from interface jitter by Benchmark’s new UltraLock3™ jitter attenuation system.

Internal digital processing and conversion is 32-bits, and this processing includes 3.5 dB of headroom above 0 dBFS. This headroom prevents the DSP overloads that commonly occur in other D/A converters.

Four balanced 32-bit D/A converters are summed together to create each balanced analog output. This 4:1 summation provides a 6 dB noise reduction, and gives the DAC3 industry-leading performance.

DAC3 vs. DAC2

The DAC3 builds upon Benchmark’s highly successful DAC2 product family. The DAC3 maintains the familiar DAC2 form factor and feature set, but adds the higher performance available from the new ES9028PRO D/A converter. The DAC3 offers the following improvements over the DAC2:

Active 2nd Harmonic Compensation
Active 3rd Harmonic Compensation
Lower THD+N
Lower passband ripple
Improved frequency response
Faster PLL lock times
Faster switching between input signals

DAC3 vs. DAC1

The DAC3 and DAC2 added these features that were not found on the DAC1:

Asynchronous 192kHz USB Audio 2.0
32-bit D/A conversion system
Word Length Display
Sample Rate Display
Polarity Control
Direct DSD D/A Conversion
-20 dB DIM
Bi-Directional 12V Trigger
Power Switch with Auto-On Function
Home Theater Bypass
Digital Pass-Through
High-Headroom DSP
Dual-Domain Hybrid Gain Control
Additional I/O
