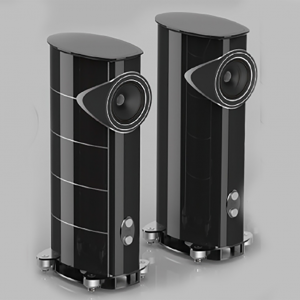

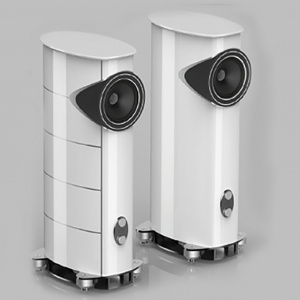

The F1-10 is the first model in our high end F1 series. The design is truly unique and the innovative feature list is outstanding. From the massive 16kg plinth to the intricate burr walnut inlay on the front and top of the cabinet, every element of the loudspeaker has been meticulously considered to ensure stunning audio performance combined with exquisite aesthetic appeal.
The first finish available will be a luxurious high gloss walnut with burr walnut inlay on the front baffle and the top of the speaker. The high density pressed birch ply with extensive internal bracing provides exceptional structural rigidity for low colouration.
A heavy weight machined aluminium platform, provides exceptional stability for precise low frequency performance and resolution of fine detail and also integrates port energy to the room. Heavy duty support cones, adjustable from above enable precise levelling while machined aluminium cups provide protection for wooden floors.
Specifications:
System Type | 2 way, downwards firing port, with BassTraxTM Tractrix diffuser |
Recommended amplifier power (Watt RMS) | 20- 280 |
Peak power handling (Watt peak) | 500 |
Sensitivity (2.83 Volt @ 1m) | 94dB |
Nominal impedance | 8 Ohm |
Frequency response (-6dB typical in room) | 28Hz- 26kHz |
Drive unit complement | 1 x 250mm IsoFlareTMpoint source driver, multi-fibre bass / midrange cone, with 75mm titanium dome compression tweeter, neodymium magnet system |
Crossover frequency | 750Hz |
Crossover type | Bi-wired passive low loss, 2nd order low pass, 2nd order high pass, cryogenically treated |
System adjustments | High frequency energy (750Hz- 26kHz) +/-3dB Presence (2.5kHz- 5.0kHz) +/- 3dB |
Dimensions – HxWxD | 1191 x 405 x 581 mm (46.9 x 15.9 x 22.9”) |
Weight – Each | 57.70kg (Inc Spikes) |
