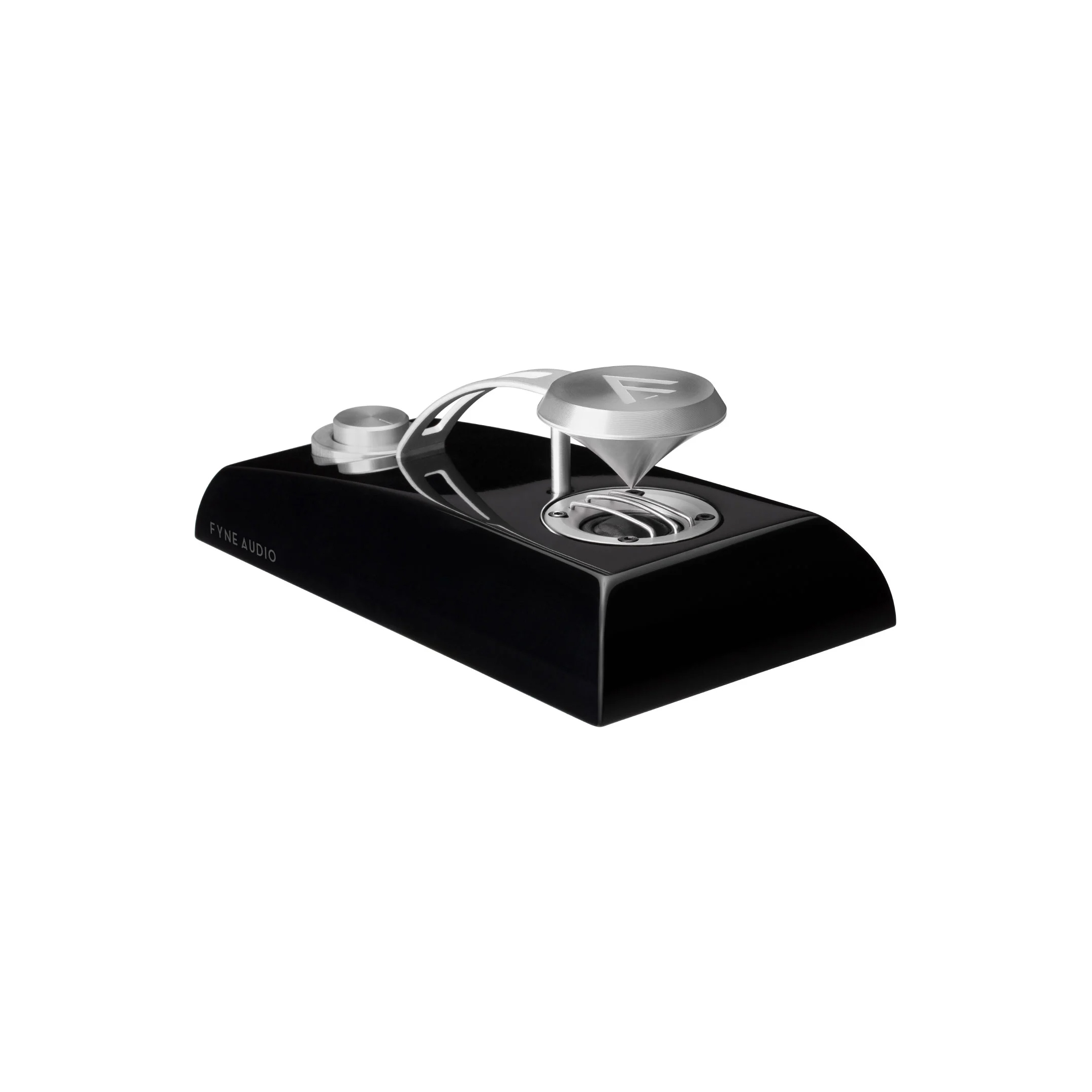

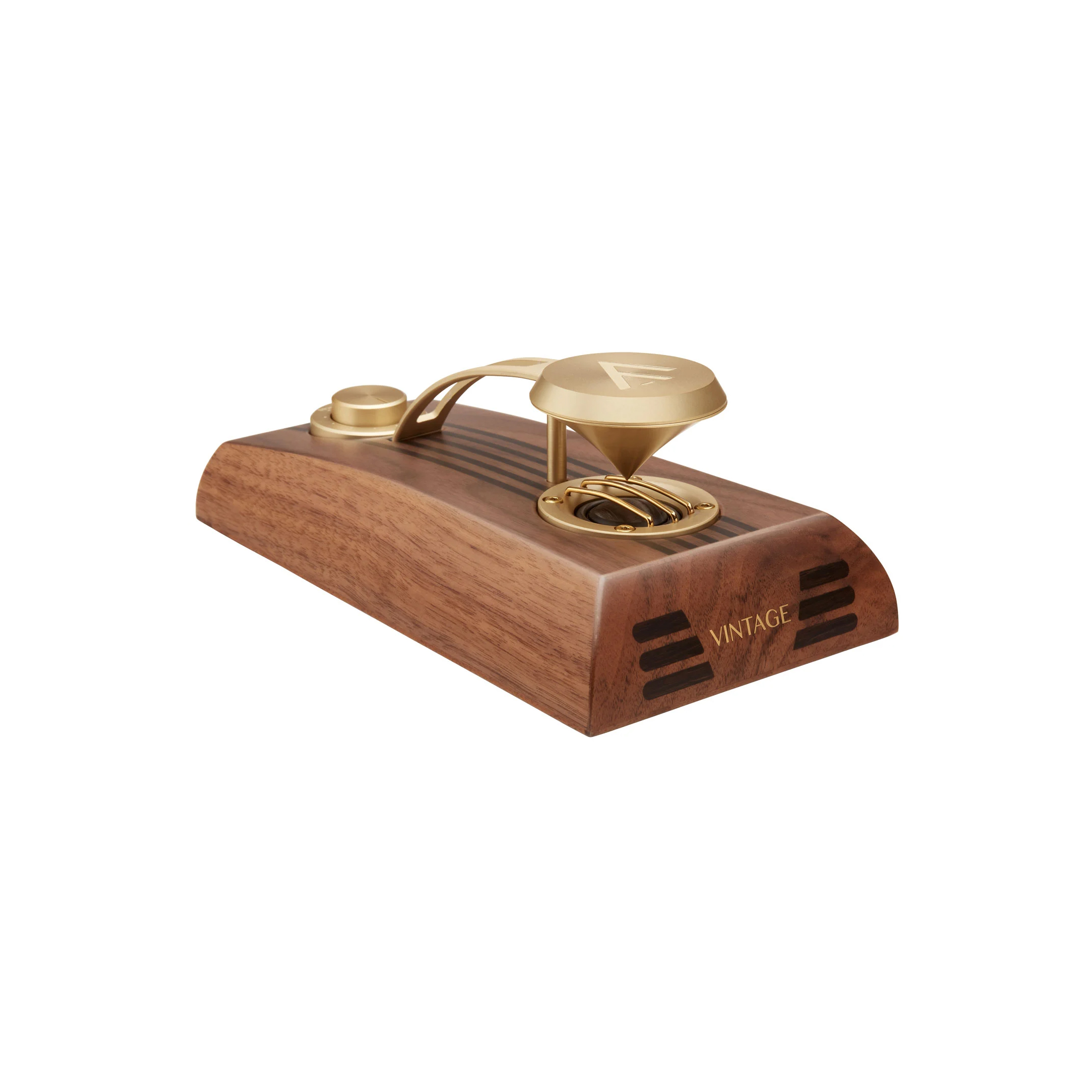

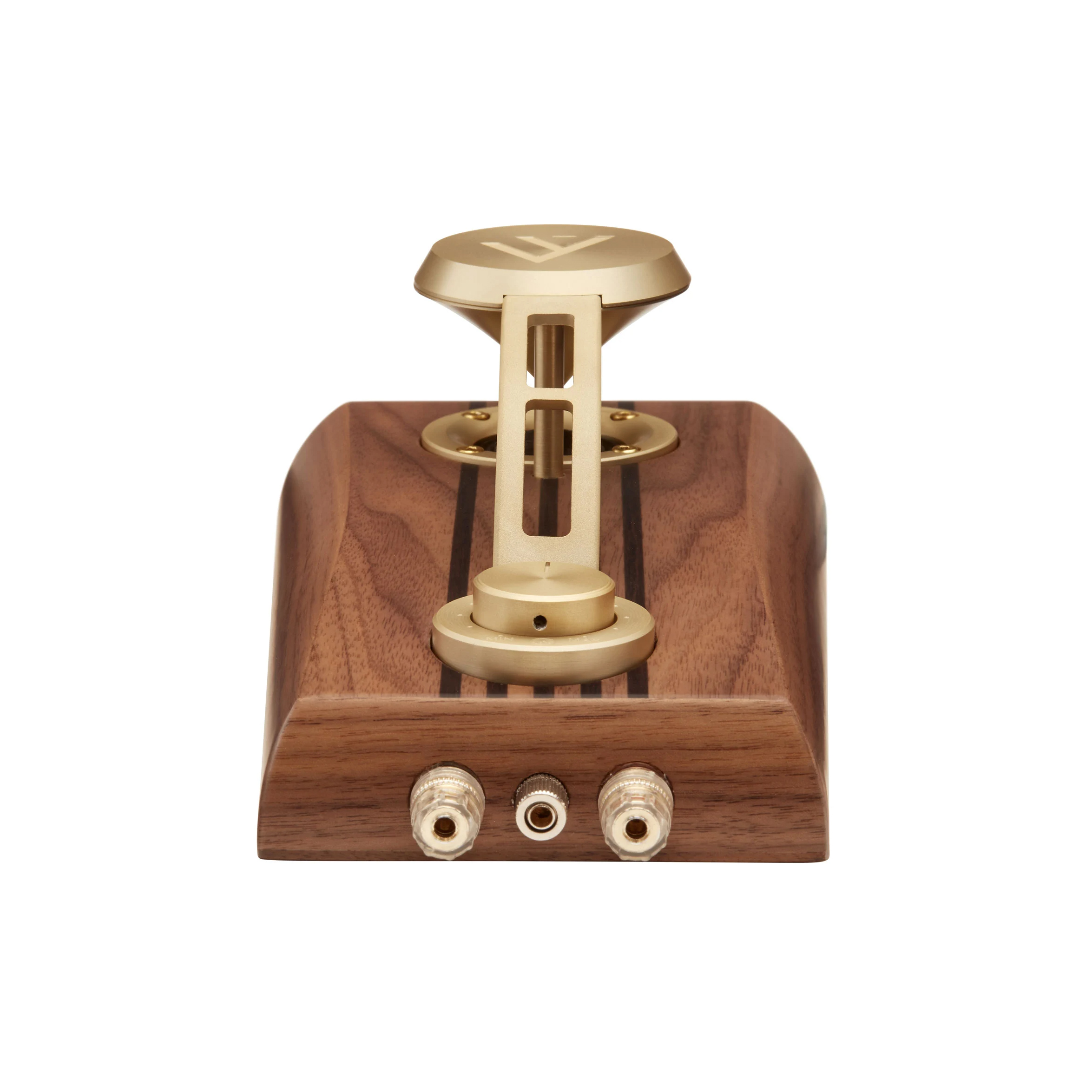

Fyne Audio SuperTrax

Fyne Audio revolutionises your perception of high-fidelity sound with our patented 360-degree super tweeter, crafted to expose every musical detail.

Improve your existing system

The SuperTrax works at its optimum with our IsoFlare point source driver, however any loudspeaker will see improvements in sound.

360-degree experience

By using our patented time aligned omnidirectional super tweeter, reflected energy in the room has the same harmonic structure as the direct on axis energy, thus giving advantages in perceived air and space

Reach 60kHz with our TPCD dome

Aluminium, titanium and magnesium range in order from around 20kHz to 32kHz and whereas considered out of the audio band, this can be perceived as harshness. Our Unique Thin Ply Carbon Diaphragm (TPCD) material allows multiple break up points and higher frequencies to be reached for a more natural sound.

SENSATIONAL SOUND

The essence of music lies not only in the depth of its bass, the texture and details of its mids, but also in the clarity of its highs. Tastefully crafted to echo Vintage Series’ design influences, SuperTrax transcends the traditional audio experience, extending the frequency range of your loudspeakers several octaves above the usual limit of human hearing. This extension enriches your music with increased tonal accuracy, a more pronounced transient response, and a sense of air and space, enhancing even the lowest frequencies. We are used to the concept of adding a subwoofer which not only adds bass but improves the phase accuracy of the music. Adding a super tweeter does the same at high frequencies, and it’s the extended phase accuracy which preserves the music’s harmonic structure, that’s a big part of what we “feel”.

Specifications

Maximum Recommended amplifier power (Watt RMS)
400

Sensitivity (2.83 Volt @ 1m)
Suitable for loudspeakers up to 98dB typically

Nominal impedance
8 Ohm

Frequency response (-6dB typical in room)
16kHz -60kHz

Drive unit complement
25mm (1”) Thin Ply Carbon Diaphragm (TPCD)
with neodymium magnet system

Crossover type
3rd order high pass 16kHz, Cryogenically treated

System adjustments
+/- 3dB from nominal setting

Dimensions – HxWxD
86 x 140 x 257mm (3.4 x 5.5 x 10.1”)
