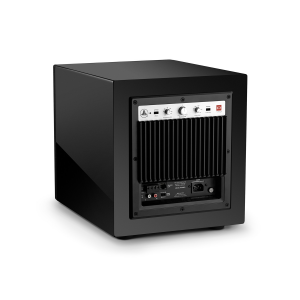

Born from JL Audio’s vast collection of advanced technologies, Dominion™ powered subwoofers combine a state-of-the-art subwoofer driver and an advanced Class D amplifier to deliver unmatched performance and value for a wide variety of compact applications.
Purpose-built to reproduce powerful low-frequency events with stunning impact and precision, the Dominion™ driver employs JL Audio’s exclusive DMA (Dynamic Motor Analysis) technology to produce higher output levels with reduced distortion, as well as improved dynamic tracking and resolution. As a result, Dominion™ subwoofers are capable of peak-to-peak excursions well in excess of 2.5-inches (63 mm – d108), and 2.7 inches (68 mm – d110), without distress or audible distortion.
Dominion™ amplifiers utilize an advanced Class D design in order to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate prodigious amounts of unclipped output voltages. These technologies ensure that the Dominion™ powered subwoofers remain in their comfort zone, which is well beyond the point where most small subwoofers run out of power or driver capability.
With a host of signal processing features included, Dominion™ powered subwoofers can be integrated into most systems with ease. Low-pass signals are precisely guided, thanks to the onboard crossover’s 24 dB/octave Linkwitz-Riley alignment. Phase and polarity controls are onboard to aid in achieving the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options are on-hand to accept either line-level or speaker-level signals. Connect a JLINK™ TRX system (sold separately) to the onboard Wireless Link port and enjoy the freedom to position your Dominion™ almost anywhere, up to 100 feet (30 meters) away from your source unit.
To contain the immense pressures created by the Dominion™ driver, each beautiful cabinet is carefully engineered and constructed using solid, CNC-cut, MDF material with extensive internal bracing and advanced assembly techniques. All Dominion™ powered subwoofers are built with pride and precision in JL Audio’s U.S. factory to deliver years of listening enjoyment.
Finish: Gloss Black
Grille Finish: Black Fabric
Enclosure Construction: MDF
|Enclosure Finish||Black Gloss – Black Ash|
|Frequency Response (Anechoic)||27 – 111 Hz (±1.5dB)|
-3 dB at 25 Hz / 118 Hz
-10 dB at 21 Hz / 143 Hz
|Effective Piston Area (Sd)||48.71 sq in / 0.0314 sq m|
|Effective Displacement||127 cu in / 2.08 L|
|Amplifier Power||750 W RMS short-term|
|Power Mode||Automatic (Signal-Sensing)|
|Unbalanced Inputs||Stereo or Mono (two RCA jacks)|
|Speaker/High-Level Inputs||Stereo or Mono (removeable plug)|
|Input Grounding||Isolated or Grounded|
|Level Control||Variable, from full mute to +15dB over reference gain|
|Filter Slope(s)||24 dB/octave|
|Filter Frequency Range||25 Hz – 130 Hz|
|Filter Defeat Function||Yes|
|Polarity||0 or 180 degrees|
|Phase||Variable, 0- 280 degrees, referenced to 80 Hz|
|Extreme Low Frequency (E.L.F.) Trim||N/A|
|Output to Slave||N/A|
|Width (W)||12 in / 305 mm|
|Height (H)||13.4 in / 340 mm|
|Depth (D)||15.86 in / 403 mm|
|Net Weight||38.2 lb / 17.3 kg|
