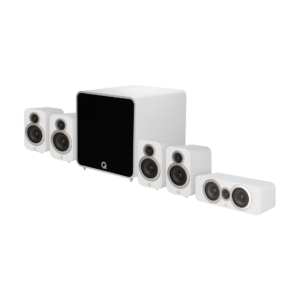

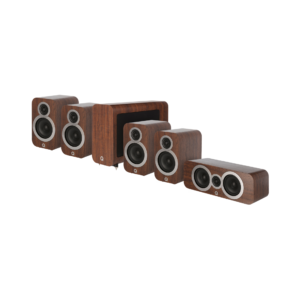

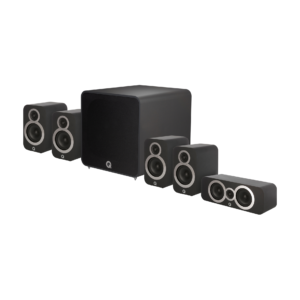

Q Acoustics 3010i 5.1 Cinema Pack

NATURAL DIALOGUE TO EXPLOSIVE SOUND

The Q 3010i Series 5.1 Cinema Pack will unleash the full potential of your home cinema electronics. Its exquisitely detailed sound will convey all the atmosphere, natural dialogue and, when required, the full bodied explosive drama of every video soundtrack. The 3010i 5.1 cinema package is derived from its award-winning predecessors and boasts an extended cabinet size delivering a larger sound, P2P™ (Point to Point) bracing for additional cabinet stability for a purer, more dynamic home cinema sound.

PERFECT FOR MUSIC & MOVIES

Each speaker that forms part of the Q 3010 5.1 Cinema Pack is a genuine hi fi speaker incorporating a wealth of technology applied to the entire 3000i Series – resulting in an exceptional cinematic performance for small to medium sized listening rooms. The Q 3010 5.1 Cinema Pack also delivers stunning musical performances.

Specifications 3010i 5.1:

Enclosure type: 2-way reflex
Woofer unit: 100 mm ø
Tweeter unit: 22 mm ø
Frequency response (+3 dB, -6 dB): 65 Hz – 30 kHz
Average Impedance: 6 Ohm
Minimum Impedance: 4 Ohm
Sensivity (2.83 V@1 m): 86 dB
Stereo amplifier: 15 – 75 W
AV Receiver power (2 ch. driven): 50 – 125 W
Crossover Frequency: 2,6 kHz
Effective volume: 4,0 l (244 cu in)
Dimensions HW/D: 253 x 150 x 252 mm (10.0 x 5.9 x 10 in)
Weight (per speaker): 4.1 kg (9.0 lbs)

Specifications 3090i:

Enclosure type: 2-way reflex
Bass Unit: 2 x 100 mm (4 in)
Treble Unit: 22 mm (0.9 in)
Frequency Response (+3 dB, -6 dB): 75 Hz – 30 kHz
Average Impedance: 6 Ohm
Minimum Impedance: 4 Ohm
Sensitivity (2.83 V@1 m): 89 dB
Stereo Amplifier: 25 – 100 W
AV Receiver (2 ch. driven): 50 – 165 W
Internal Amplifier Power: –
Crossover Frequency: 2.7 kHz
Effective Volume: 6.6 L (403 cu in)
Dimensions H/W/D mm: 152 x 430 x 216 mm (6.0 x 16.9 x 8.5 in)
Weight (per speaker): 6 kg (13.2 lbs)

Specifications 3060S:

Enclosure type: infinite baffle
Bass Unit: 200 mm (8 in)
Treble Unit: –
Frequency Response (+3 dB, -6 dB): 35 – 250 Hz
Average Impedance: –
Minimum Impedance: –
Sensitivity (2.83 V@1 m): –
Stereo Amplifier: –
AV Receiver (2 ch. driven): –
Internal Amplifier Power: 150 W Class D
Crossover Frequency: 35 – 250 Hz (var)
Effective Volume: 10.6 L (647 cu in)
Dimensions H/W/D mm: 300 x 480 x 150 mm (11.8 x 18.9 x 5.9 in)
Weight (per speaker): 8.5 kg (18.7 lbs)

What’s in the box?

4 x 3010i bookshelf speakers
1 x 3060s Active Subwoofer
1 x 3090ci Centre Speaker

Specifications 3010i 5.1 PLUS:

Enclosure type: 2-way reflex
Woofer unit: 100 mm ø
Tweeter unit: 22 mm ø
Frequency response (+3 dB, -6 dB): 65 Hz – 30 kHz
Average Impedance: 6 Ohm
Minimum Impedance: 4 Ohm
Sensivity (2.83 V@1 m): 86 dB
Stereo amplifier: 15 – 75 W
AV Receiver power (2 ch. driven): 50 – 125 W
Crossover Frequency: 2,6 kHz
Effective volume: 4,0 l (244 cu in)
Dimensions H/W/D: 253 x 150 x 252 mm (10.0 x 5.9 x 10 in)
Weight (per speaker): 4.1 kg (9.0 lbs)

Specifications Q B12:

Drive unit: 305mm (12in) high-excursion and stiffness paper, straight-sided cone.
Peak Amplifier Power: 440 W
Continuous Amplifier Power: 220 W
Power type: Class D
Frequency range: 28 Hz – 300 Hz
Crossover frequency range: 70 Hz – 225 Hz
Input impedance: 13 kΩ
Input sensitivity: 150 mV
Enclosure type: Infinite baffle
Enclosure material: MDF
Dimensions (H / W / D): 400 x 400 x 446 mm (15.7 x 15.7 x 17.6 in)
Weight: 47.40 lbs / (21.5 kg)

Specifications 3090i:

Enclosure type: 2-way reflex
Bass Unit: 2 x 100 mm (4 in)
Treble Unit: 22 mm (0.9 in)
Frequency Response (+3 dB, -6 dB): 75 Hz – 30 kHz
Average Impedance: 6 Ohm
Minimum Impedance: 4 Ohm
Sensitivity (2.83 V@1 m): 89 dB
Stereo Amplifier: 25 – 100 W
AV Receiver (2 ch. driven): 50 – 165 W
Internal Amplifier Power: –
Crossover Frequency: 2.7 kHz
Effective Volume: 6.6 L (403 cu in)
Dimensions H/W/D mm: 152 x 430 x 216 mm (6.0 x 16.9 x 8.5 in)
Weight (per speaker): 6 kg (13.2 lbs)

What’s in the box?

4 x 3010i bookshelf speakers
1 x Q B12 Active Subwoofer
1 x 3090ci Centre Speaker
