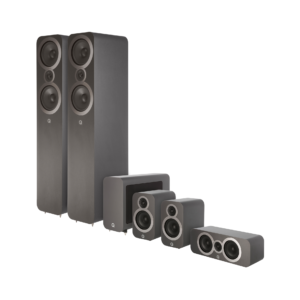

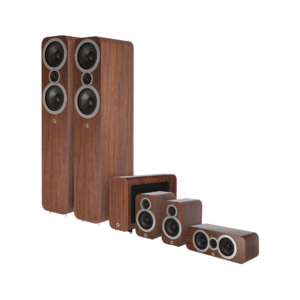

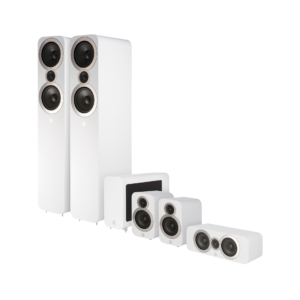

Q Acoustics 3050i 5.1 Cinema Pack

NATURAL DIALOGUE TO EXPLOSIVE SOUND

The 3050i Series 5.1 Cinema Pack will unleash the full potential of your home cinema electronics. Its exquisitely detailed sound will convey all the atmosphere, natural dialogue and, when required, the full bodied explosive drama of every video soundtrack. The 3050i 5.1 cinema package boasts P2P™ (Point to Point) bracing for additional cabinet stability for a purer, more dynamic home cinema sound. The Q 3050i floorstanding speakers also boast HPE™ technology which eliminates sympathetic resonance within the enclosures by equalising air pressure within the 3050i cabinet resulting in a purer, uncoloured sound.

PERFECT FOR MUSIC & MOVIES

Each speaker that forms part of the Q 3050 5.1 Cinema Pack is a genuine hi-fi speakers incorporating a wealth of technology applied to the entire 3000i Series – resulting in an exceptional cinematic performance – perfect for the larger room thanks to the inclusion of the Q 3050i floorstanding speaker. The Q 3050 5.1 Cinema Pack also delivers stunning musical performances.

Specifications 3050i 5.1:

Enclosure type: 2-way reflex
Bass Unit: 2 x 165 mm ( 6.5 in)
Treble Unit: 22 mm (0.9 in)
Frequency Response (+3 dB, -6 dB): 44 Hz – 30 kHz
Average Impedance: 6 Ohm
Minimum Impedance: 4 Ohm
Sensitivity (2.83 V@1 m): 91 dB
Stereo Amplifier: 25 – 180 W
AV Receiver (2 ch. driven): 50 – 165 W
Internal Amplifier Power: –
Crossover Frequency: 2.5 Hz (var)
Effective Volume: 32.4 L (1977 cu in)
Dimensions H/W/D mm: 1020 x 310 x 310 mm (40.1 x 12.2 x 12.2 in)
Enclosure width: 200mm (7.9 in)
Weight (per speaker): 17.8 kg (39.2 lbs)

Specifications 3010i:

Enclosure type: 2-way reflex
Bass Unit: 100 mm (4 in)
Treble Unit: 22 mm (0.9 in)
Frequency Response (+3 dB, -6 dB): 65 Hz – 30 kHz
Average Impedance: 6 Ohm
Minimum Impedance: 4 Ohm
Sensitivity (2.83 V@1 m): 86 dB
Stereo Amplifier: 15 – 75 W
AV Receiver (2 ch. driven): 50 – 125 W
Internal Amplifier Power: –
Crossover Frequency: 2.6 Hz (var)
Effective Volume: 4.0 L (244 cu in)
Dimensions H/W/D mm: 253 x 150 x 252 mm (10.0 x 5.9 x 10 in)
Weight (per speaker): 4.1 kg (9.0 lbs)

Specifications 3090i:

Enclosure type: 2-way reflex
Bass Unit: 2 x 100 mm (4 in)
Treble Unit: 22 mm (0.9 in)
Frequency Response (+3 dB, -6 dB): 75 Hz – 30 kHz
Average Impedance: 6 Ohm
Minimum Impedance: 4 Ohm
Sensitivity (2.83 V@1 m): 89 dB
Stereo Amplifier: 25 – 100 W
AV Receiver (2 ch. driven): 50 – 165 W
Internal Amplifier Power: –
Crossover Frequency: 2.7 kHz
Effective Volume: 6.6 L (403 cu in)
Dimensions H/W/D mm: 152 x 430 x 216 mm (6.0 x 16.9 x 8.5 in)
Weight (per speaker): 6 kg (13.2 lbs)

Specifications 3060S:

Enclosure type: infinite baffle
Bass Unit: 200 mm (8 in)
Treble Unit: –
Frequency Response (+3 dB, -6 dB): 35 – 250 Hz
Average Impedance: –
Minimum Impedance: –
Sensitivity (2.83 V@1 m): –
Stereo Amplifier: –
AV Receiver (2 ch. driven): –
Internal Amplifier Power: 150 W Class D
Crossover Frequency: 35 – 250 Hz (var)
Effective Volume: 10.6 L (647 cu in)
Dimensions H/W/D mm: 300 x 480 x 150 mm (11.8 x 18.9 x 5.9 in)
Weight (per speaker): 8.5 kg (18.7 lbs)

What’s in the box?

2 x 3010i bookshelf speakers
2 x 3050i floorstanding speakers
1 x 3090ci Centre Speaker
1 x 3060s Active Subwoofer

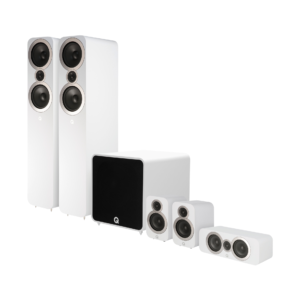

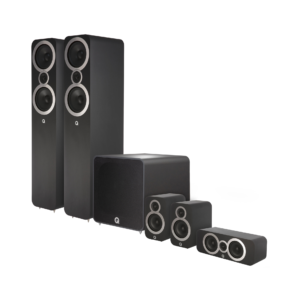

Specifications 3050i 5.1 PLUS:

Enclosure type: 2-way reflex
Bass Unit: 2 x 165 mm ( 6.5 in)
Treble Unit: 22 mm (0.9 in)
Frequency Response (+3 dB, -6 dB): 44 Hz – 30 kHz
Average Impedance: 6 Ohm
Minimum Impedance: 4 Ohm
Sensitivity (2.83 V@1 m): 91 dB
Stereo Amplifier: 25 – 180 W
AV Receiver (2 ch. driven): 50 – 165 W
Internal Amplifier Power: –
Crossover Frequency: 2.5 Hz (var)
Effective Volume: 32.4 L (1977 cu in)
Dimensions H/W/D mm: 1020 x 310 x 310 mm (40.1 x 12.2 x 12.2 in)
Enclosure width: 200mm (7.9 in)
Weight (per speaker): 17.8 kg (39.2 lbs)

Specifications 3010i:

Enclosure type: 2-way reflex
Bass Unit: 100 mm (4 in)
Treble Unit: 22 mm (0.9 in)
Frequency Response (+3 dB, -6 dB): 65 Hz – 30 kHz
Average Impedance: 6 Ohm
Minimum Impedance: 4 Ohm
Sensitivity (2.83 V@1 m): 86 dB
Stereo Amplifier: 15 – 75 W
AV Receiver (2 ch. driven): 50 – 125 W
Internal Amplifier Power: –
Crossover Frequency: 2.6 Hz (var)
Effective Volume: 4.0 L (244 cu in)
Dimensions H/W/D mm: 253 x 150 x 252 mm (10.0 x 5.9 x 10 in)
Weight (per speaker): 4.1 kg (9.0 lbs)

Specifications 3090i:

Enclosure type: 2-way reflex
Bass Unit: 2 x 100 mm (4 in)
Treble Unit: 22 mm (0.9 in)
Frequency Response (+3 dB, -6 dB): 75 Hz – 30 kHz
Average Impedance: 6 Ohm
Minimum Impedance: 4 Ohm
Sensitivity (2.83 V@1 m): 89 dB
Stereo Amplifier: 25 – 100 W
AV Receiver (2 ch. driven): 50 – 165 W
Internal Amplifier Power: –
Crossover Frequency: 2.7 kHz
Effective Volume: 6.6 L (403 cu in)
Dimensions H/W/D mm: 152 x 430 x 216 mm (6.0 x 16.9 x 8.5 in)
Weight (per speaker): 6 kg (13.2 lbs)

Specifications Q B12:

Drive unit: 305mm (12in) high-excursion and stiffness paper, straight-sided cone.
Peak Amplifier Power: 440 W
Continuous Amplifier Power: 220 W
Power type: Class D
Frequency range: 28 Hz – 300 Hz
Crossover frequency range: 70 Hz – 225 Hz
Input impedance: 13 kΩ
Input sensitivity: 150 mV
Enclosure type: Infinite baffle
Enclosure material: MDF
Dimensions (H / W / D): 400 x 400 x 446 mm (15.7 x 15.7 x 17.6 in)
Weight: 47.40 lbs / (21.5 kg)

What’s in the box?

2 x 3010i bookshelf speakers
2 x 3050i floorstanding speakers
1 x 3090ci Centre Speaker
1 x Q B12 Active Subwoofer
