Smaller does not mean lesser. We designed the compact T/5i to give smaller sized spaces and systems equal quality sound, so while scale may change the performance stays the same.
Simplify, Then Add Lightness: Simplicity is its own reward and T/5i reduces the classic cubic sub to its bare essence. A single, high quality AlloyFibre™ composite driver and down firing orientation produces maximum coupling with the floor and eliminates the need for a grille. T/5i is the purest expression of REL.
A 360-DEGREE UPGRADE
When we upgraded our drivers, we were forced to redesign outward. The lovely cabinets grew over its predecessor due to thicker cabinet walls and improved bracing. Why? Because the additional speed and impact of the new drivers requires greater control or the benefits can be lost before they get to the listener.
Faster & Deeper
We began by updating our classic 8” bass engine to reduce mass, while greatly increasing stiffness. This improvement led to upgrading cabinet dimensions and wall thickness to better control the deep bass. Additional upgrades extended even into the design of our feet, resulting in greater speed and solidity to the presentation of sound.
REL’S RELIABLE BRAINS AND BRAWN
REL’s electronics are the brains and power behind our success. Serie Ti uses the same Class A/B power amplifier sections with large, high current power supplies, precision-wound transformers and an amazing reliability record that has powered some 100,000 RELs.
Standby Mode switch not included on 110V units.
Zero Compression Wireless
Arrow™ is REL’s latest generation of zero compression wireless. Super-fast delivery of both High Level Bass and .1/ LFE ensures the rich, natural warmth that only RELs can deliver. With a throw distance of some 45’(13.7M) Arrow permits flexible placement without sacrificing sound quality.

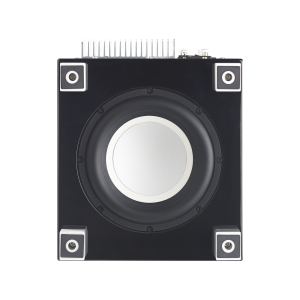

Closed Box, down-firing driver
ACTIVE DRIVER SIZE & MATERIAL
8 in., 200mm long-throw, FibreAlloy™ inverted aluminium dust cap, steel chassis, white cone
PASSIVE RADIATOR SIZE & MATERIAL
LOW FREQUENCY EXTENTION
-6dB at 32 Hz

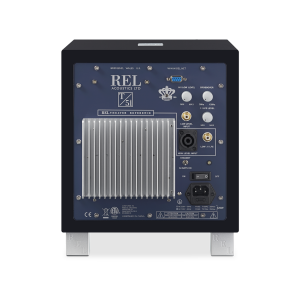

High Level Neutrik Speakon, Low Level single RCA, LFE RCA
125 watts (RMS)
Arrow (Optional), Zero Compression, Single Large Scale Integrated Chip
FULLY ELECTRONIC SET SAFE
MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets
1.6 Amp semi delay 230 volts operation, 3.15 Amp semi delay 115 volts operation
W X H X D
10.5 x 12.5 x 12.7 in. (267 x 317 x 322 mm)
26.5 lbs. (12 kg)
High Gloss Black, High Gloss White, 5 coats
Yes (10 Meters Nominal)
