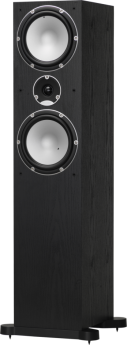

- 2 way floorstanding loudspeaker for medium to large sized rooms
- 2 x 7″ mid/bass driver offers a powerful performance from a compact cabinet
- 1.1” coated silk dome extends high frequency response to 32 kHz providing fine vocal and instrumental detail
- Light yet stiff multi-fibre coated paper pulp cone delivers fast, tight and punchy bass reproduction
- 6 point driver fixing and aesthetically coordinated HF faceplate provides modern technical styling
- Walnut vinyl finish to enhance home décor
- High tolerance crossover components provide smooth integration across frequency bandwidth
- Silver plated wiring and DMT (Differential Materials Technology) damping on HF capacitor enhance musicality and communication
- Crossover and internal damping tuned to ensure superb leading edge attack of drums and bass instruments
- High power handling allows speakers to be driven hard yet remain subtle and refined at everyday listening levels
- Heavyweight fibreboard construction with extensive internal bracing enhances the effortless full-bodied sound
- Cabinets ported for a richer and deeper bass response
- Adjustable floor spikes allow precise levelling of speaker cabinet without damage to carpets
- Dedicated plinth provides stability to deliver tighter and faster bass response
- TANNOY
– 90 years of British sound heritage and innovation - 10-Year Warranty Program*
- Designed and engineered in the U.K.
*Warranty details can be found at musictri.be
Performance
Recommended amplifier power (Watts RMS)
20 – 150
Continuous power handling (Watts RMS)
75
Peak power handling (Watts)
300
Sensitivity (2.83 Volts @ 1m)
93 dB
Nominal Impedance (Ohms)
8
Frequency response (-6 dB)
32 Hz – 32 kHz
Drive Units
High frequency
28 mm (1.1”) Nitro-urethane damped layer woven polyester dome, neodymium magnet system
Low frequency
178 mm (7”) Multi- fibre coated pulp paper cone x 2
Crossover
Crossover Frequency
2.4 kHz
Crossover Type
Passive low loss 2nd order low pass, 3rd order high pass, bi-wired
Construction
Enclosure type
Twin rear ported reflex
Volume
44.0 l (1.55 cu. ft)
Dimensions (H x W x D)
(inc plinth)
955 x 314.3 x 308 mm
(37.6 x 12.4 x 12.1”)
Net weight
15.0 kg (33.1 lbs)
Finish
Walnut
