Tannoy TS2.8

De snelle DSP-engine van de TS2.8 vervangt de traditionele analoge filternetwerken en regelt het basmanagement en alle gebruikersaanpassingen. Deze omvatten eenvoudige draaiknoppen voor roll-off frequentie, fase en gain, waardoor de TS2.8 subwoofer even eenvoudig is op te stellen als krachtig in gebruik. Dankzij de automatische aan/uit-functie hoef je de TS2 na het instellen niet meer te bedienen en ben je zeker van de meest energie-efficiënte werking.



Product Features:

180 Watt Class D amplifier gives very high output level combined with energy efficiency

8″ long throw drive unit and 8″ auxiliary bass radiator provide exceptional low frequency performance

Opposing driver configuration minimises cabinet movement and unwanted vibration

LFE and stereo phono inputs provide flexibility of system integration

Compact dimensions aid room placement

Linished black finish complements room décor and matches finish of Tannoy HTS 101 XP loudspeakers and Tannoy BASESTATION ONE

Digital Signal Processing gives precise system equalisation and control over crossover frequency and phase

Heavyweight MDF cabinet minimises colouration from panel flexing

Elimination of tuning port means no audible turbulence at high volumes

Auto signal sensing and standby mode for further energy efficiency

Integral feet provide stable positioning

Tannoy – around 100 years of British sound heritage and innovation



Specifications:

Performance

Power Output
180 Watts

Drive Units

Driver
200 mm (8”), long throw side firing woofer
200 mm (8”), long throw auxiliary bass radiator (ABR)

Magnetic shielding
No

Crossover

Crossover Frequency
50Hz – 200Hz, variable control

Inputs
LFE / Line Input (RCA / phono), or Left & Right speaker level inputs

Power Requirements
115 or 230V AC nominal, 50- 60Hz (switchable),
60VA maximum

Fuse Rating
AC 110 – 120V T1.6AL 250V
AC 220 – 240V T800mAL 250V

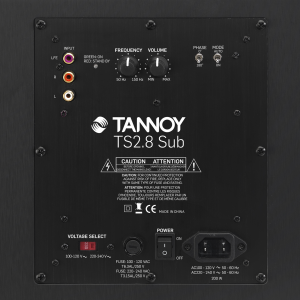

Additional Features
Energy saving AUTO power function
Switchable phase, 0 or 180 degrees
Volume and crossover frequency controls

Satellite Weight
1.4kg (3.1lbs)

Cabinet

Weight
10.0kg (24.3lbs)

Dimensions (inc. feet) H x W x D
420mm x 275mm x 370mm (16.5” x 10.8” x 14.6”)

Supplied accessories
Country-specific mains cable (cord)
