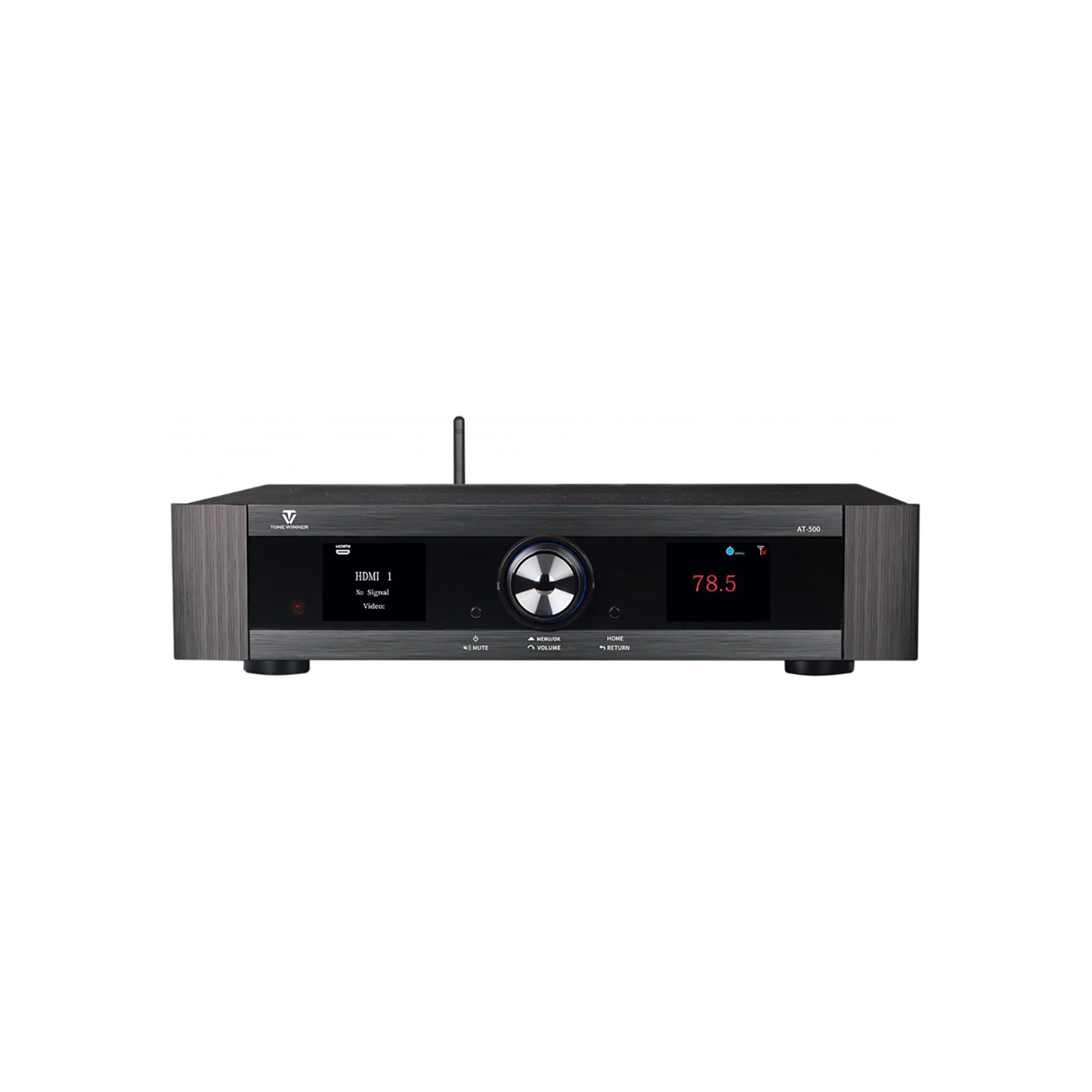

AT-500 is a 8K immersive AV processor which is developed for high-end private cinemas. lt supports Dolby Atmos immersive audio effects and DTS:X immersive sound, along with 8K video technology. And it is compatible with video formats such as 3D, HDR10+, and Dolby Vision. It an ultra-high-definition audio-visual hub that integrates both a cinema system and a music center.
Specifications
| Product type | Audio / Video processor Home Cinema preamplifier |
| Channels | Total: 16 channels |

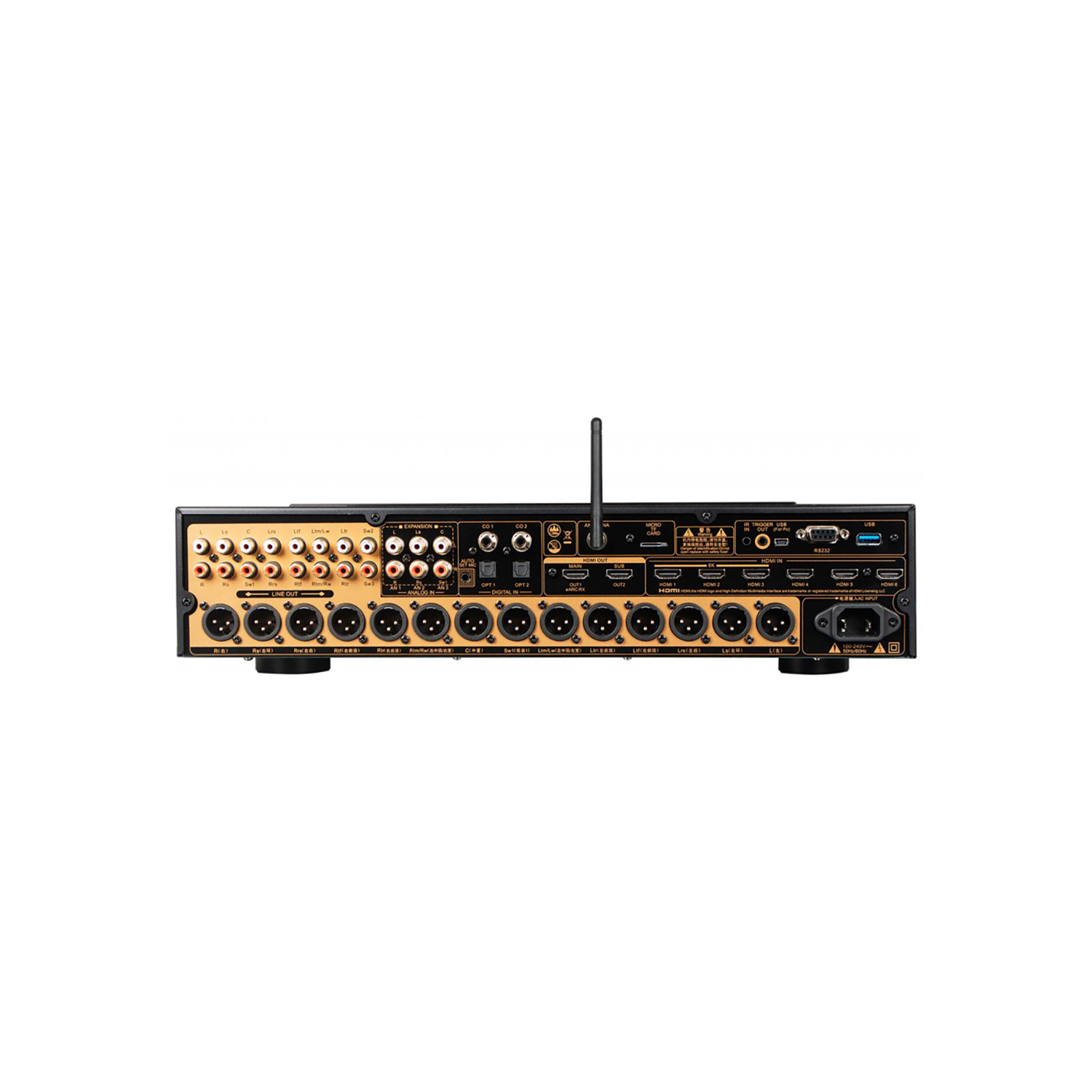

| Inputs | Bluetooth 6x HDMI 3x Stereo RCA 2x Coaxial 2x Optical Toslink 1x Micro SD slot 1x USB-A (USB Host) |
| Output | HDMI 2.1 (including 1 eARC) RCA 9.3.4 channels XLR 9.1.4 channels |
| Other connectors | 1x RS232 1x trigger output 5V |
| Supported audio formats | Dolby Atmos
DTS/X |
| Supported video formats/resolutions | 8K, YUV 4:4:4 Dolby Vision HDR10 / HDR10+ HLG |
| HDCP version | 2.3 |
| eARC support | Yes |
| Automatic EQ calibration | Yes |
| Lips Synchronization | Up to 1000ms |
| Output level | 4Vrms ±1dB |
| Total harmonic distortion (THD) | ≤0.004% |
| Signal-to-noise ratio (SNR) | ≥110dB |
| Frequency response | 10Hz-65kHz |
| Channel separation | ≥90dB |
| General | |
|---|---|
| Supply voltage | 100-240VAC 50/60Hz |
| Maximum consumption | 30W |
| Weight | 4.3kg |
| Color | Black |
| Package | 1x Tonewinner AT-500 1x ETM-3 measurement microphone 1x Remote control 1x Power cable |
