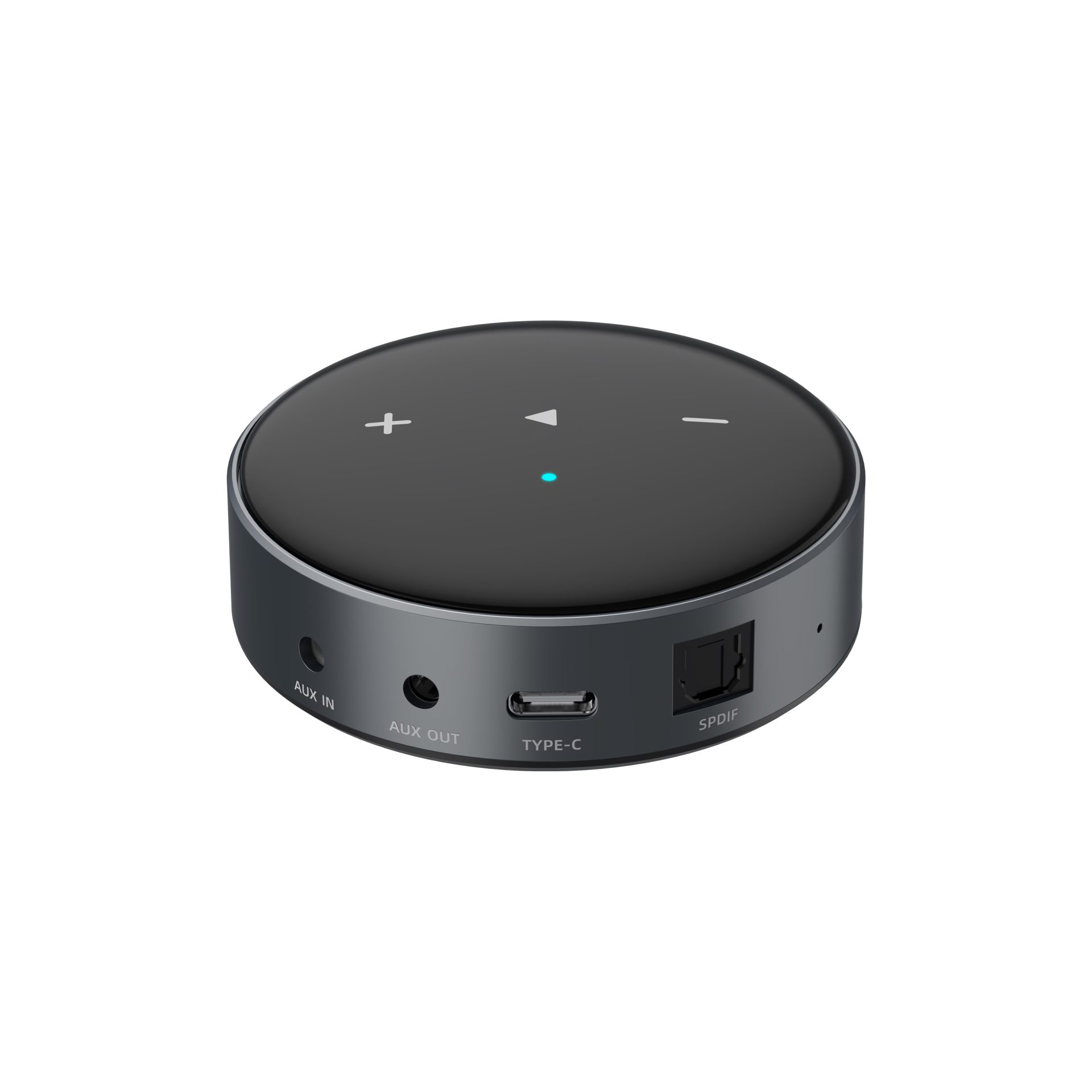

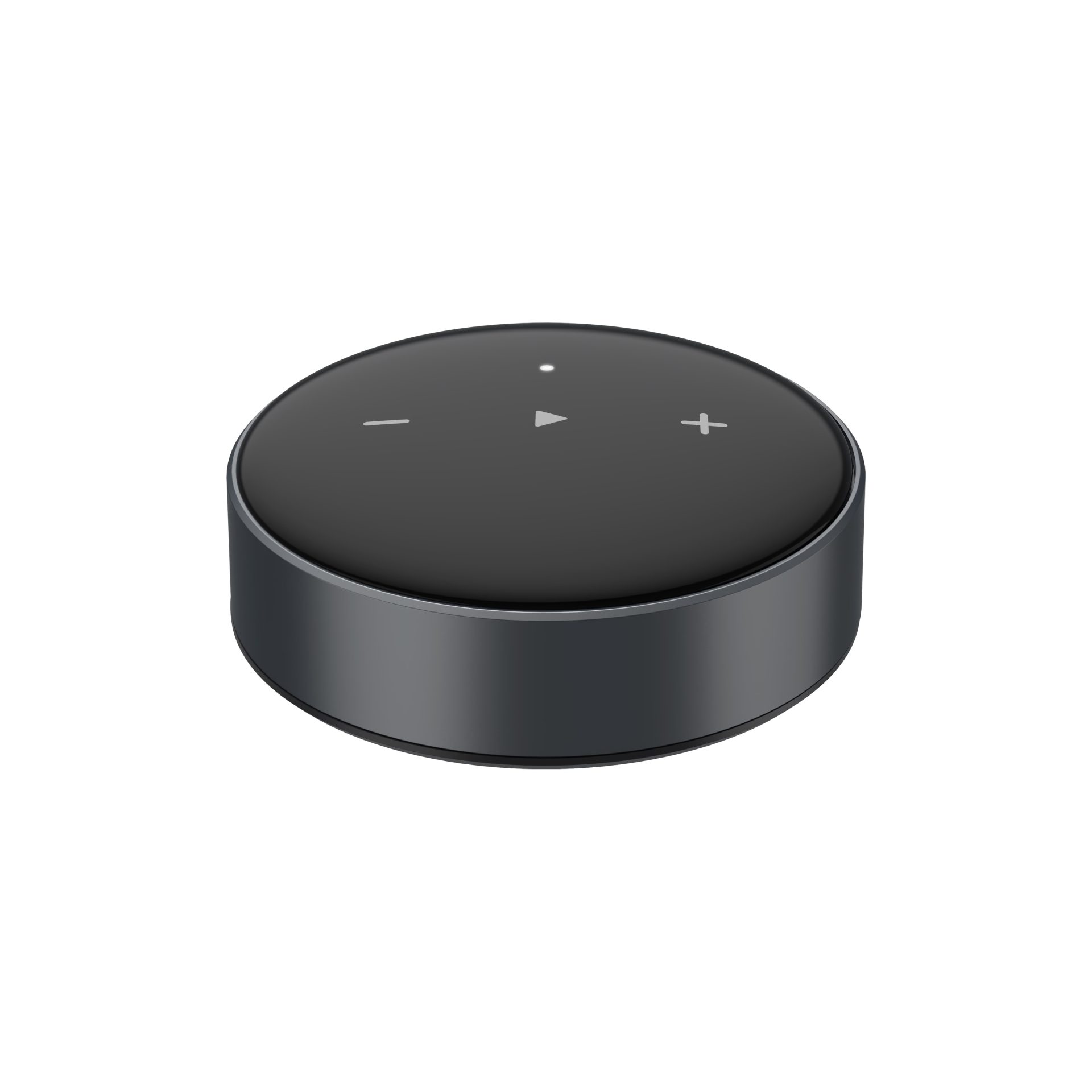

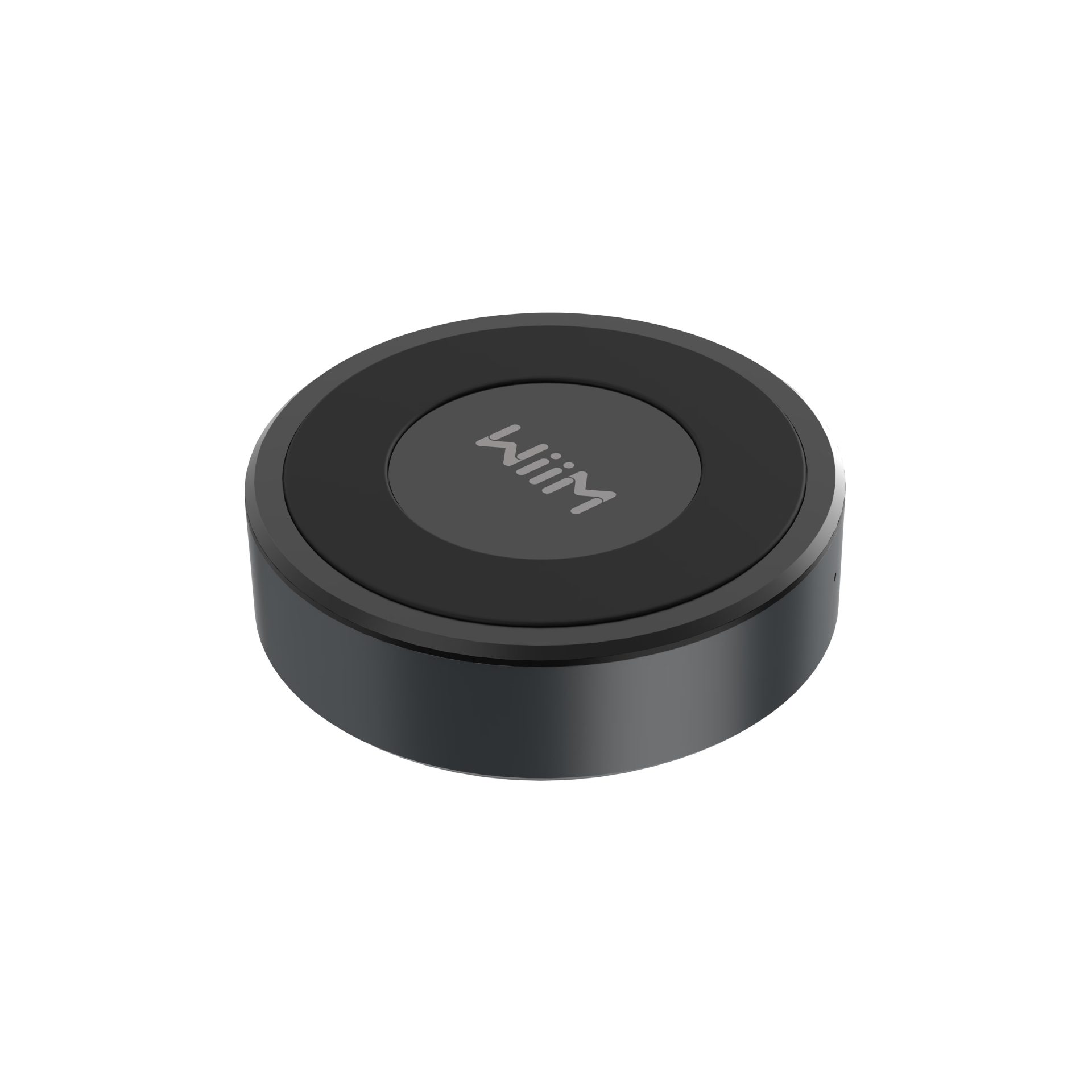

WiiM Mini

Stream Hi-Res audio up to 192 kHz/24 bit

WiiM Mini supports up to 192kHz, 24-bit audio output. That’s the same as an artist’s recording in the studio.

The integrated TI stereo DAC provides high-quality analog audio output with 106-dB SNR, dynamic range, and -92dB THD+N performance.

All your content in one app

We support many popular music streaming services in our WiiM Home app with more to come. Or connect to your NAS or local files to stream your favorite music.

Play music everywhere with multi-room audio

Building a wireless multiroom system has never been easier. Group WiiM Mini with other AirPlay 2 speakers, Alexa-enabled devices, or another WiiM Minis to have a multi-room/synchronized audio experience.

Specifications:

Dimensions: 69 × 69 × 24 mm
Weight: 48g
Audio Codec: MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG
Wi-Fi: Dual band Wi-Fi supports 802.11 a/b/g/n/ac 2.4 GHz and 5 GHz network
Bluetooth:  Bluetooth 5.2, SBC and AAC codec, BT receiver and transmitter (with SW update)
Line in: 1Vrms

Line out:

Line in to Line out:
Power Output=2Vrms
THD+N Ratio=0.009%
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB

BT in to Line out:
Power Output=2Vrms
THD+N Ratio=0.009%
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB

SPDIF:

Line in to SPDIF out:
Power Output=-3dBFS
THD+N Ratio=0.005%
SNR=102dB
Crosstalk=-103dB
Dynamic Range=97dB

BT in to SPDIF out:
Power Output=0dBFS
THD+N Ratio=0.005%
SNR=297dB
Crosstalk=-364dB
Dynamic Range=213dB

Power Supply: 5V,1A
LED: Three color status LED – Red, Green and White.
WiiM Mini LED Behaviors >
Button: Capacitive touch – Play/Pause, Volume+, Volume-
