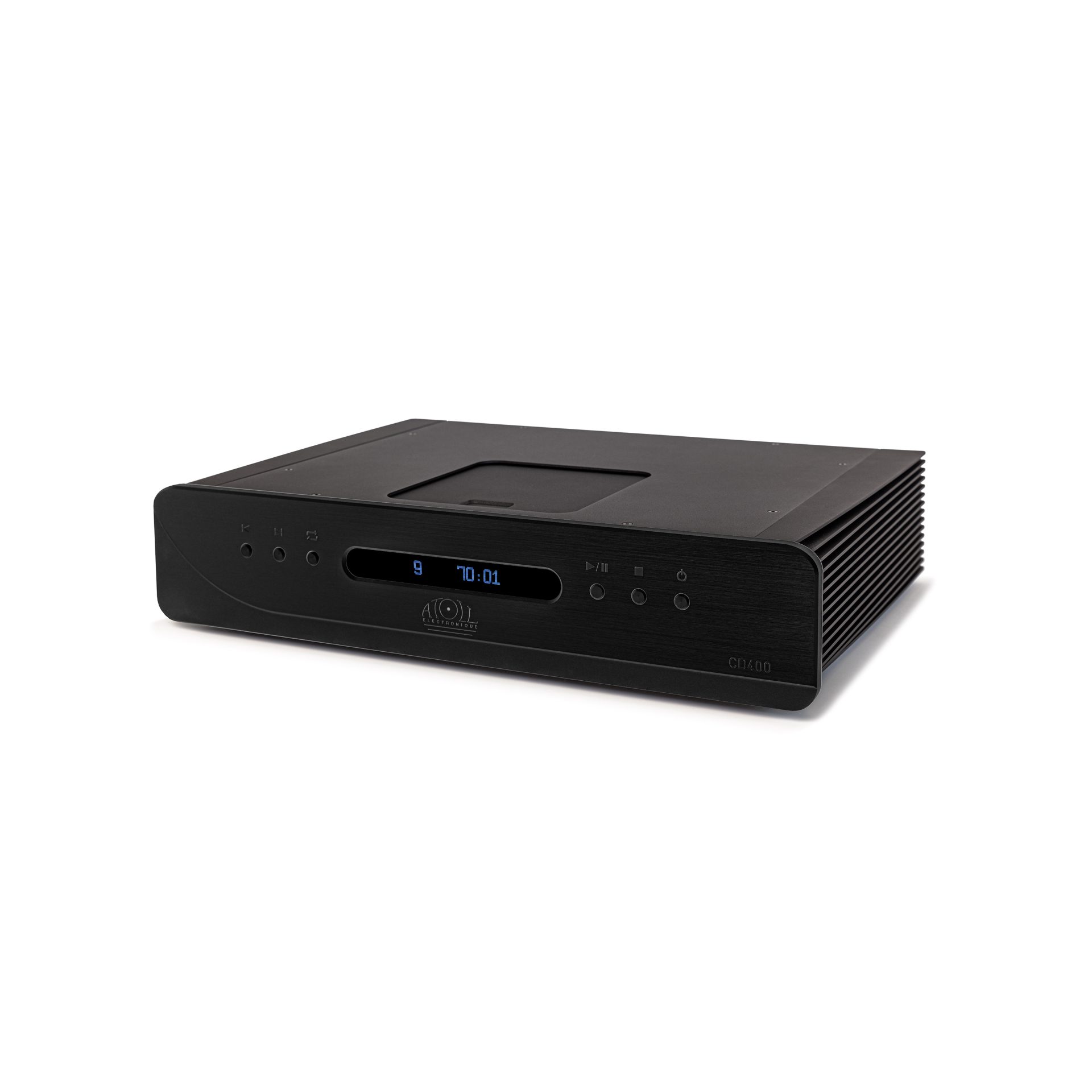

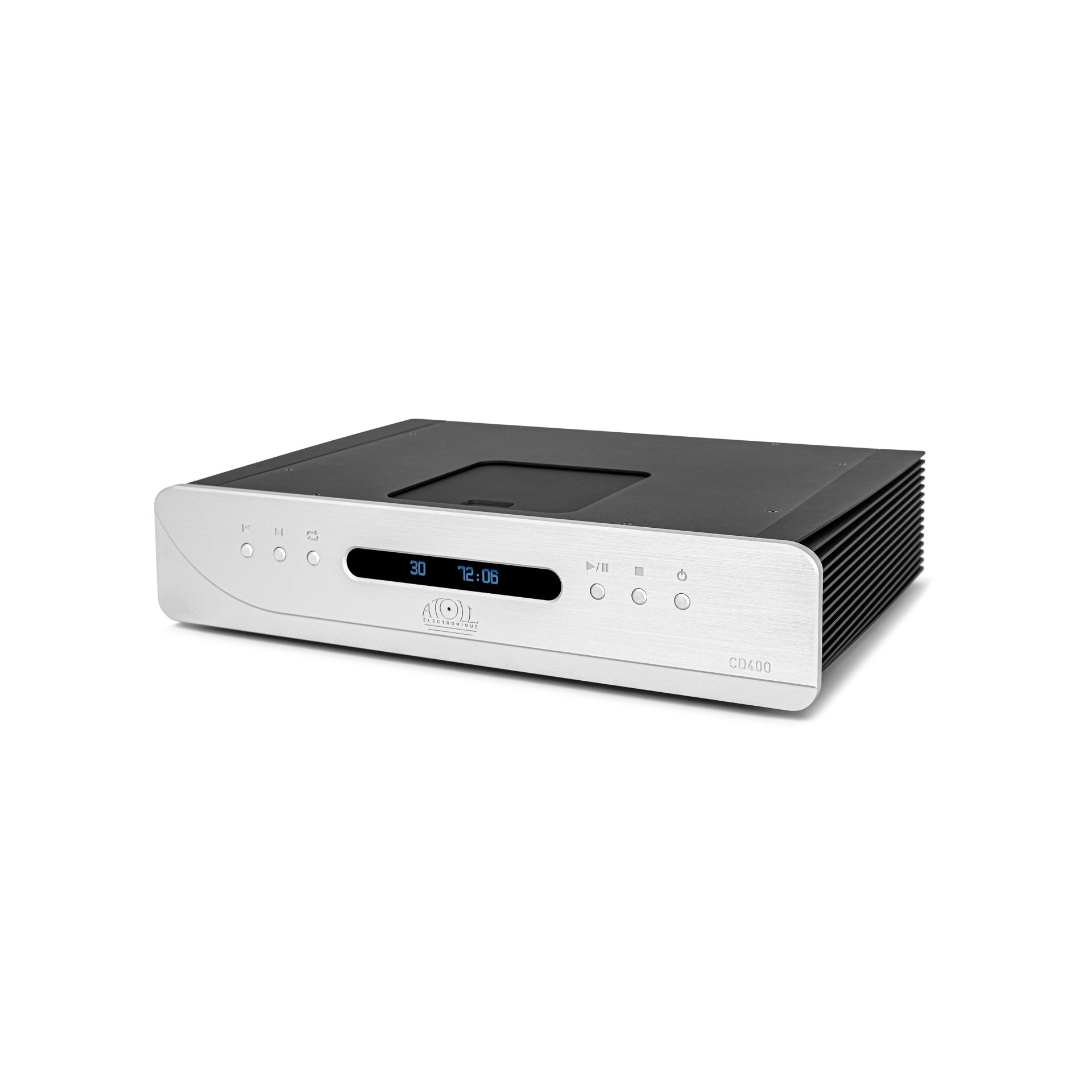

The CD400 EVO player is equipped with the latest Top Loading mechanics developed by ATOLL. It has perfectly matched high-performance power supplies and audio stages, offering an immersive stereo image and striking sound realism. Thanks to its digital inputs using the internal conversion stages, this player is also a high-end converter.
- 10 mm brushed, micro-blasted and anodized aluminium front panel, high-precision engraving.
- 2 mm steel chassis.
- Solid aluminium sides.
- New top-loading mechanics developed by ATOLL, suspension mounting, solid aluminum platter.
- Two 10 VA toroidal transformers each for the audio stages.
- 30 VA linear transformer (general power supply).
- 1.6 VA linear transformer (control logic).
- Ten regulated and independent power supplies.
- High-quality MKP link capacitors.
- Anti-vibration system.
- Complete dual mono structure:
– Two independent symmetrical stages for each channel.
– One PCM1792A converter per channel. - Bipolar transistor audio stages have a perfectly symmetrical structure, are polarized in class A, and are without feedback.
- Transistor and LED current sources ensure perfect stability and drastic rejection of distortions.
- Converter inputs: coaxial, optical and USB.
- High-contrast OLED display (on or off mode after 5 seconds of inactivity).
- CD text display.
- ATOLL global remote control supplied as standard.
TECHNICAL DATA
Power supply: 30 VA + 2×10 VA (audio) + 1.6 VA
Total capacitive: 48,000 µF
Rising time: 1.3 µs
Output impedance: 5.6 Ω
Output level: 2.1 Vrms
Two converters: PCM1792A
Dynamic: 132 dB
Signal-to-noise ratio: 132 dB
Distortion rate at 1 kHz: 0.002%
Standby power consumption: < 0.5 W
Operating power consumption: 18 to 24 W
Dimensions: 440×340×100 mm
Weight: 12 Kg

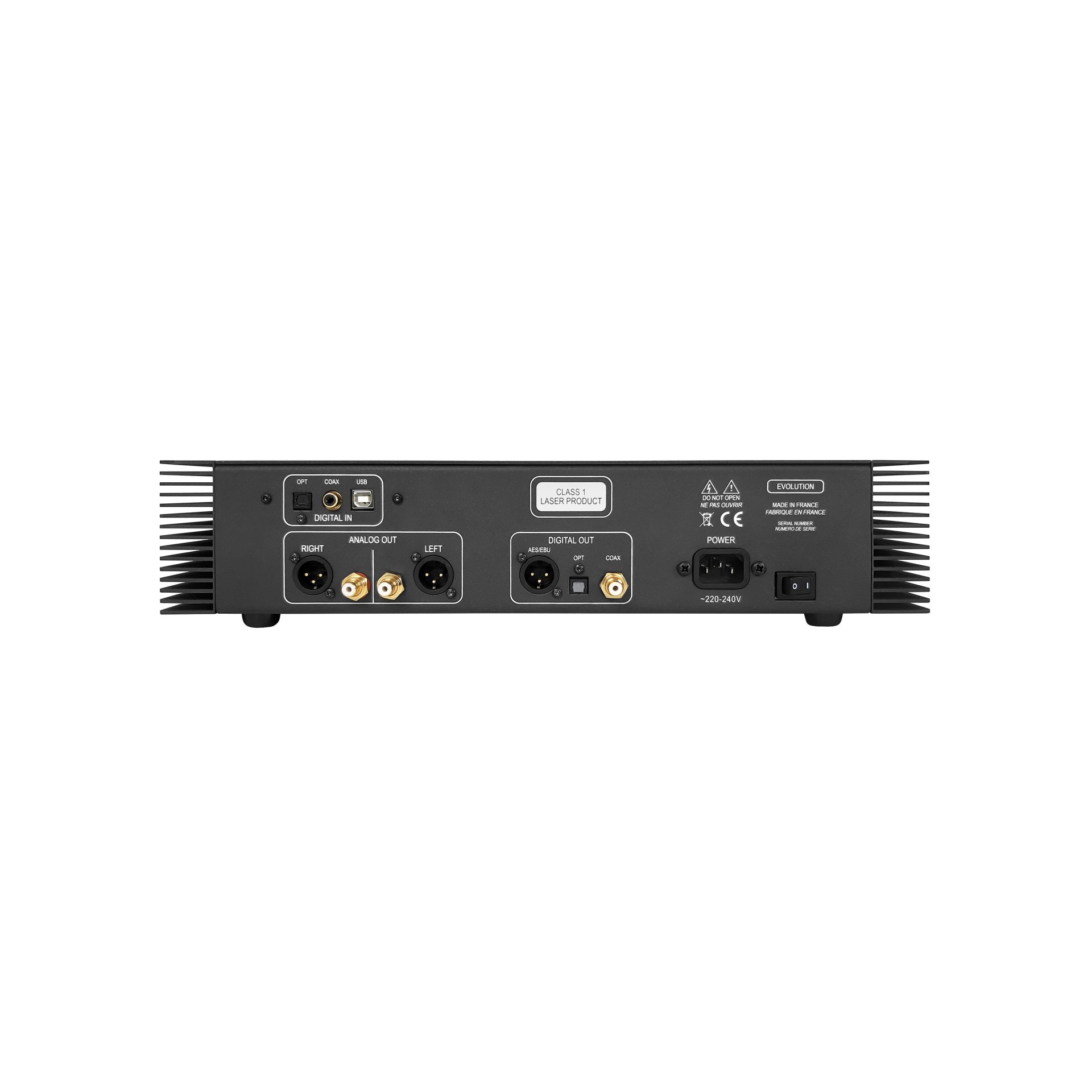

CONNECTIVITY
Inputs
1 Optical input.
1 Coaxial input.
1 USB input.
Outputs
1 Stereo XLR output.
1 Stereo RCA output.
1 AES/EBU output.
1 Digital optical output.
1 Digital coaxial output.
DIGITAL INPUTS
1 Coaxial input (S/PDIF – 24 bits/192 kHz).
1 Optical input (S/PDIF – 24 bits/192 kHz).
1 Asynchronous USB-B input: PCM stream from 16 to 32 bits up to 192 kHz asynchronously (USB interface: XMOS with a program specifically developed for ATOLL).
| Kies Kleur | Zwart, Zilver |
|---|
