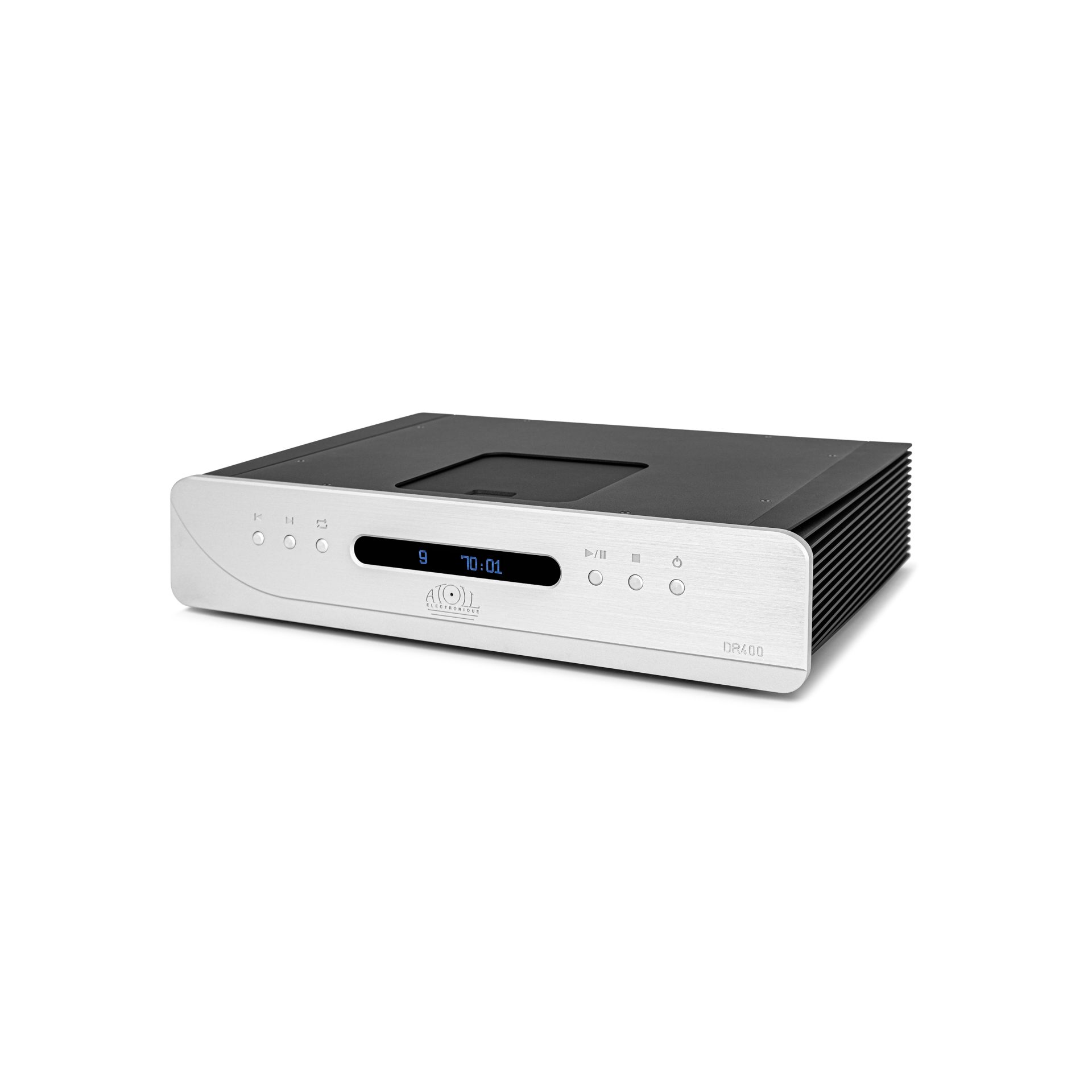

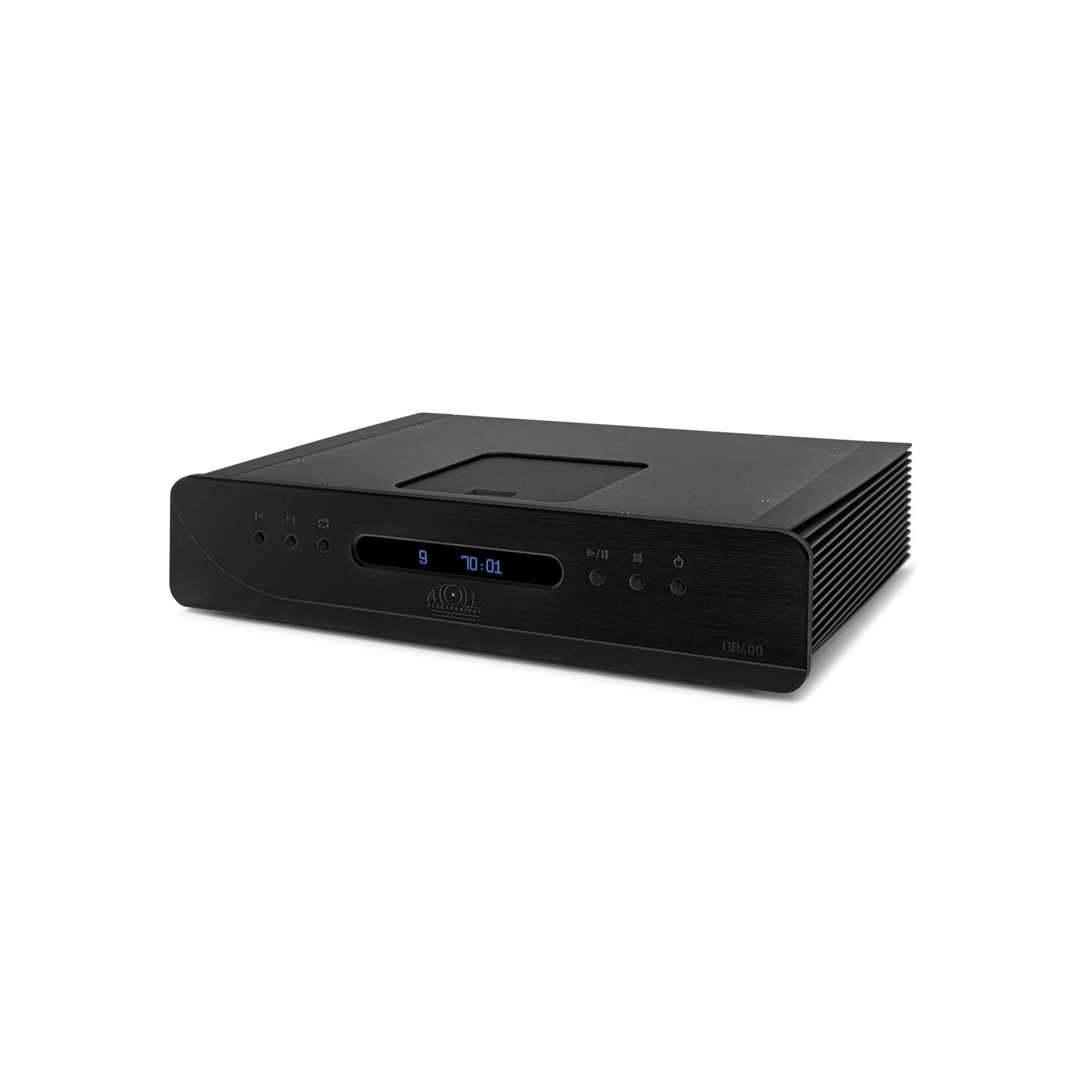

The DR400 EVO is the pure Drive version of the CD400 EVO, incorporating innovative technical solutions.
It has ATOLL’s latest Top loading mechanics, a solid aluminium platter, and a specific anti-vibration system. The digital stages and power supplies have been designed to provide maximum realism and density to the sound reproduction.
- 10 mm brushed, micro-blasted and anodized aluminium front panel, high-precision engraving.
- 2 mm steel chassis.
- Solid aluminium sides.
- New top-loading mechanics were developed by ATOLL, including suspension mounting and a solid aluminum platter.
- 30 VA linear transformer (general power supply).
- 1.6 VA linear transformer (control logic).
- Four regulated and independent power supplies.
- Total capacitance of 88,000 µF.
- Anti-vibration system.
- High-speed LVDS (Differential Line Driver) circuit for formatting S/PDIF and AES/EBU signals.
- High-contrast OLED display (on or off mode after 5 seconds of inactivity).
- CD text display.
- ATOLL global remote control supplied as standard.
TECHNICAL DATA
Power supply: 30 VA + 1.6 VA
Total of capacitors: 88,000 µF
Output signal amplitude: 1 V
Standby consumption: < 0.5 W
Operating consumption: 4 to 10 W
Dimensions: 440×340×100 mm
Weight: 12 Kg

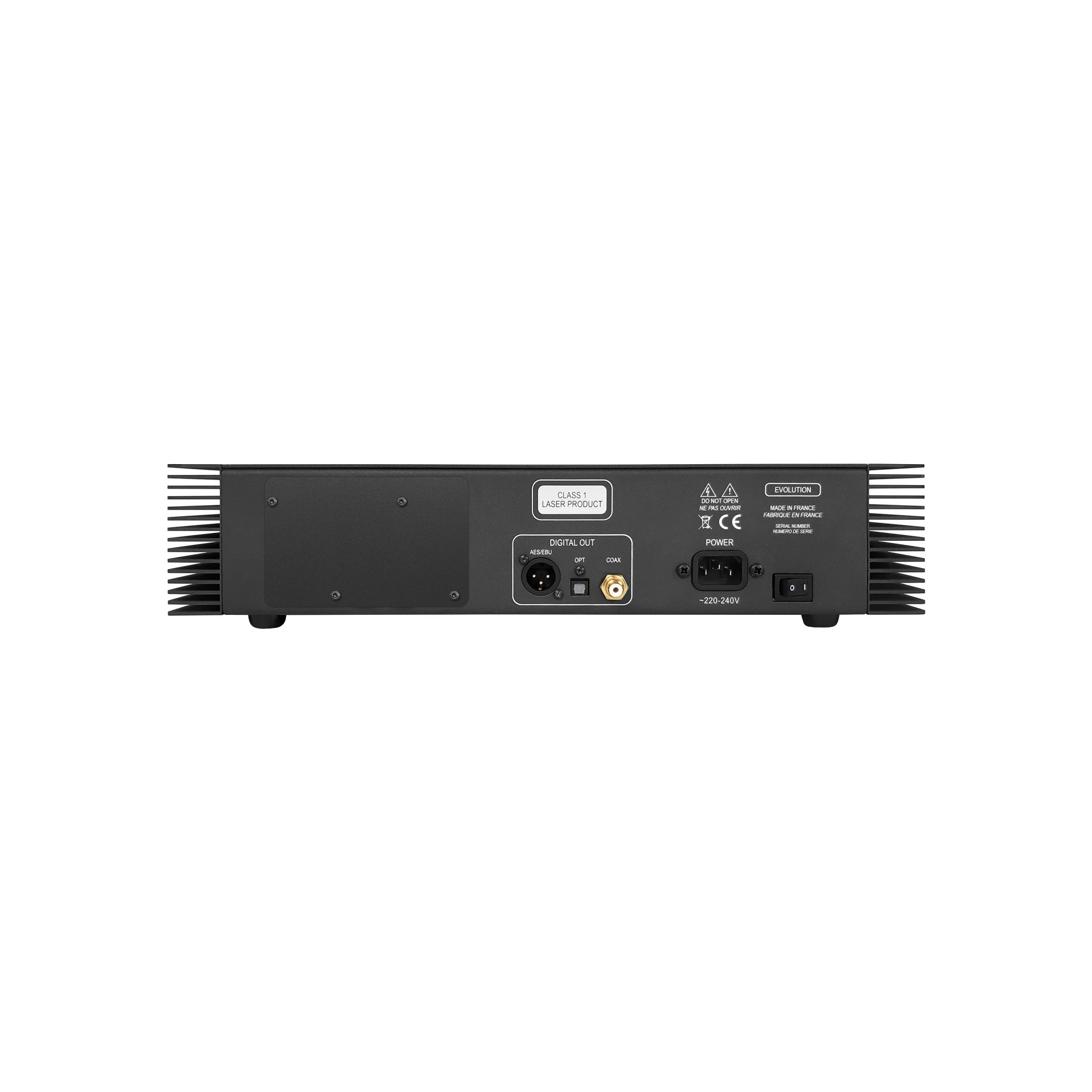

CONNECTIVY
1 AES/EBU output.
1 Digital optical output.
1 Digital coaxial output.
