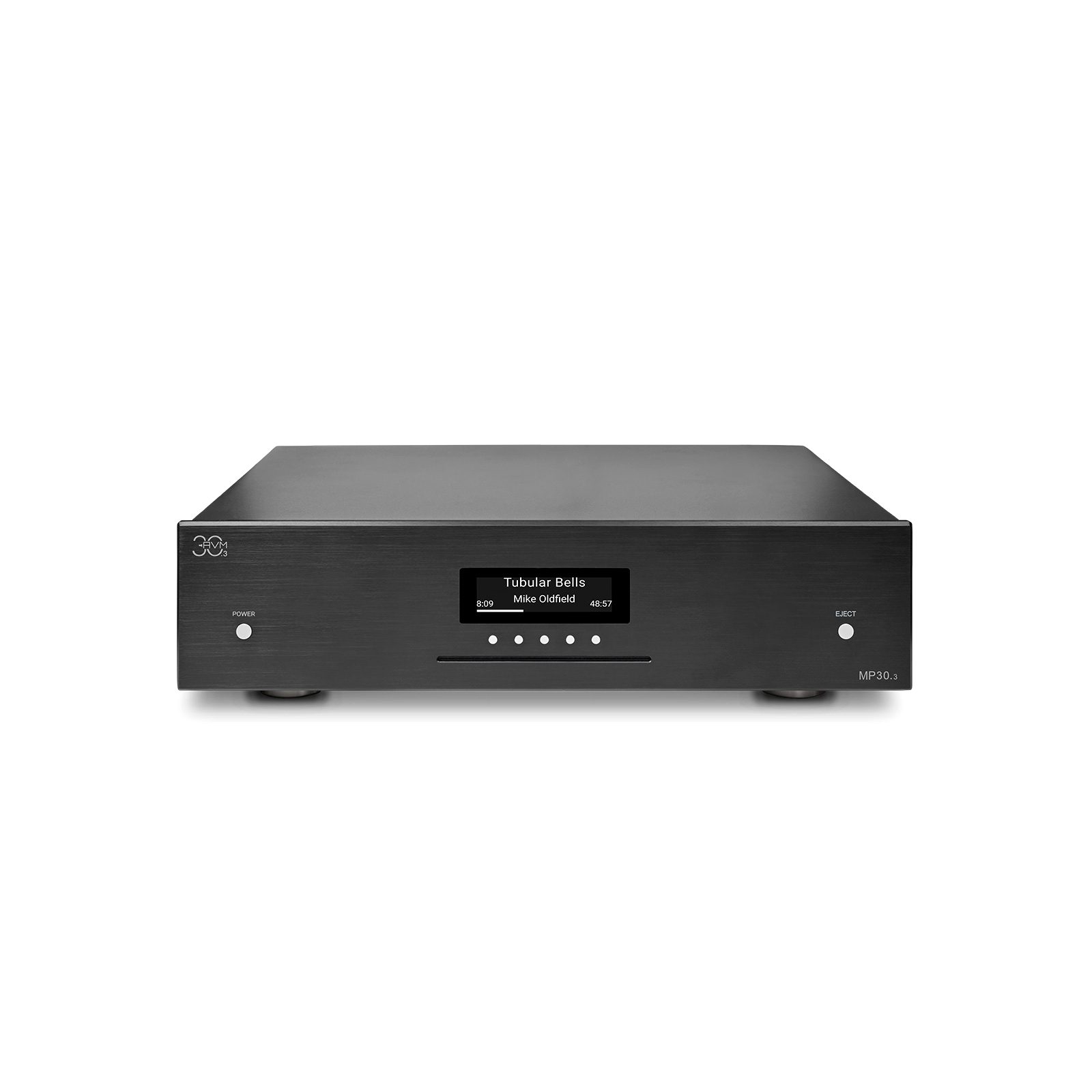

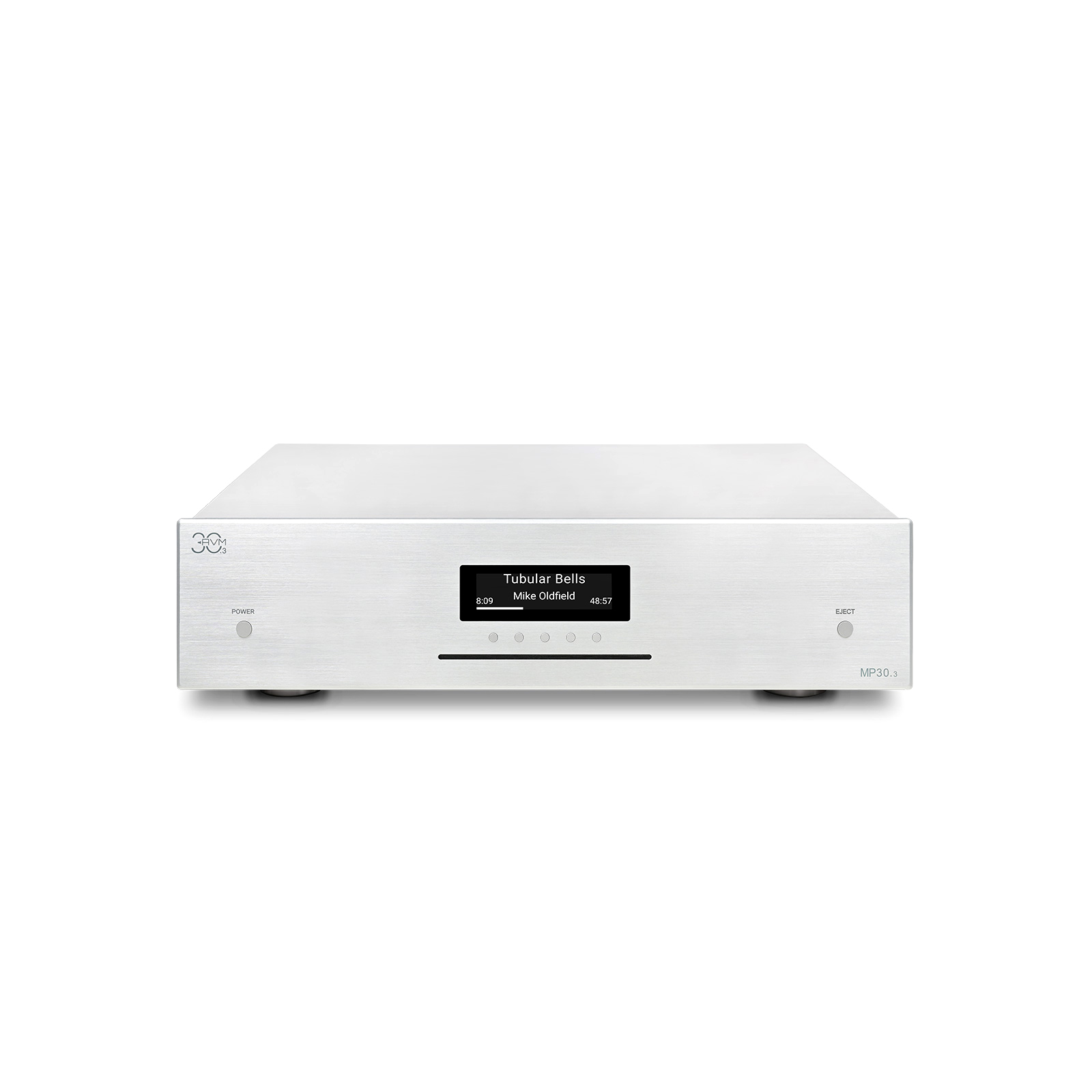

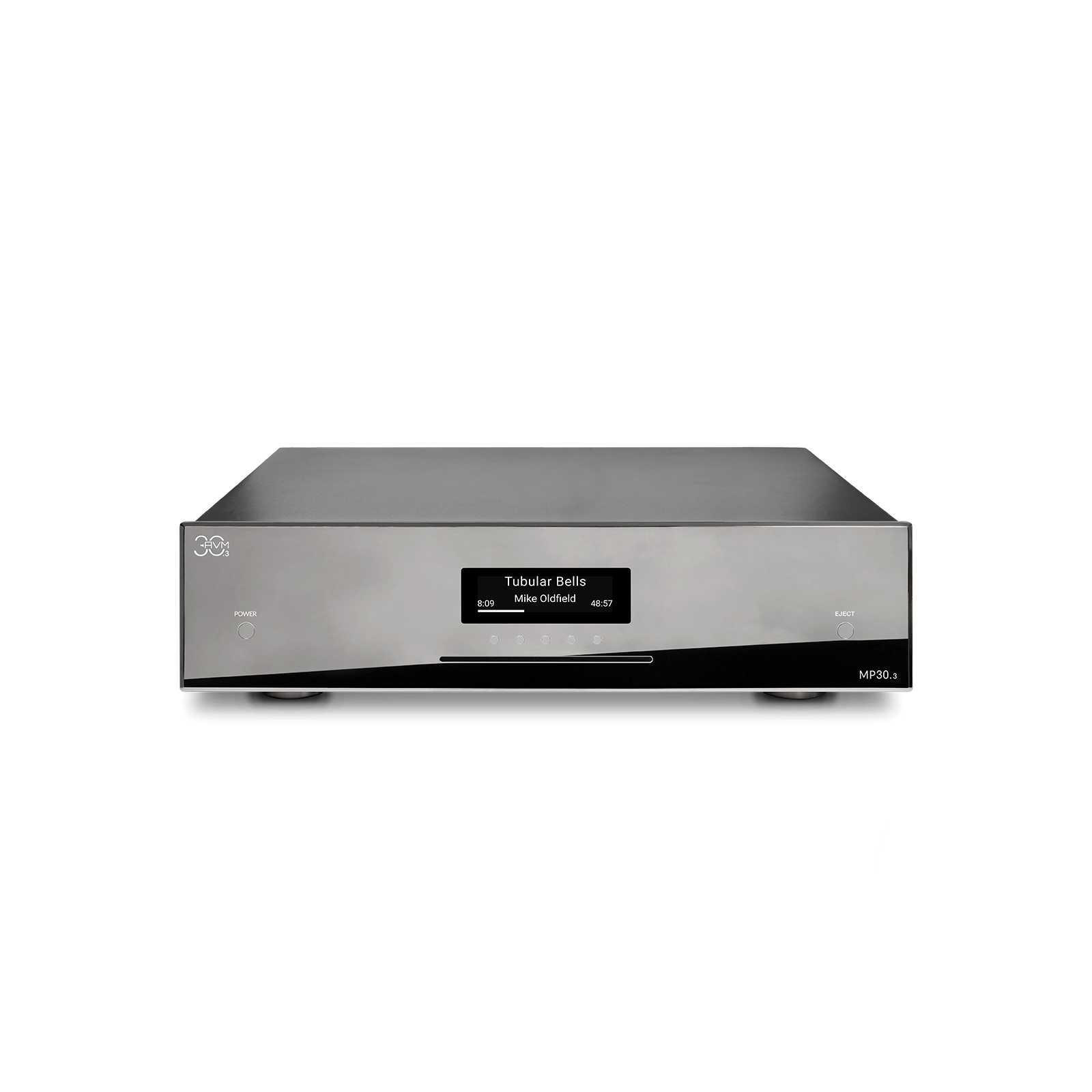

AVM Audio MP 30.3

A Modern Media Player: The Combination of CD Player and Streaming

In the tradition and with our accumulated experience since the 1990s to develop digital playback devices without compromise in terms of sound, the new High Performance Media Player MP 30.3 has been created based on the AVM X-STREAM Engine®. Numerous new features have been incorporated into this 30.3 device and the new RC X APP also controls the MP 30.3 completely. Separate digital playback devices for CD and streaming functions are no longer necessary. The playback option for CD collections will be retained and expanded to include the almost infinite music catalogs of the streaming providers.

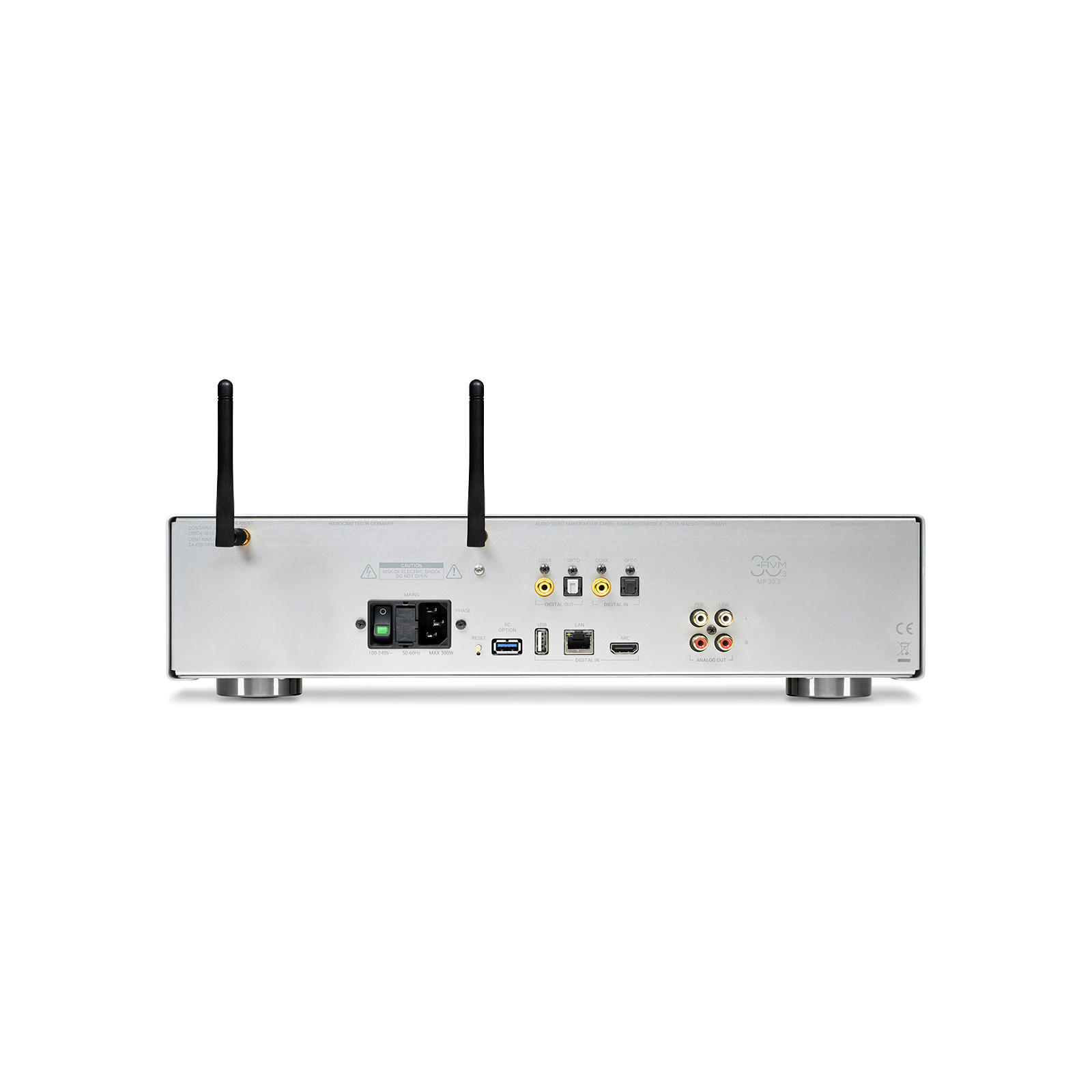

All modern connections are available, so that a TV can also be connected via HDMI ARC. In order to achieve our goal of constructing one of the most powerful sound on the world market with this compact media player, we have miniaturized proven sound technologies from our large media players and designed them into a shapely, screwless precision housing.

The main focus was on a completely modernized APP control system. The RC X app clearly contains all important functions. The simplest, intuitively learnable operation as well as a clear and nicely designed user interface make the management of even large music collections child’s play. This makes you want to explore new music on numerous streaming platforms. The AVM RC X app is available for iOS (Apple) or Androidcontrolled devices. In addition, basic functions can also be controlled via the included RC3 Full Aluminium remote control.

The new AVM X-STREAM engine® can stream all high-resolution formats, including DSD (256). This streaming engine is a complete in-house AVM development and is completely software-based, so it can be updated online in a future-proof manner. An HDMI (ARC) interface is also on board as well as the modern Bluetooth connection, further digital inputs and also a USB A interface are standard. Completely new are the digital outputs, which can also be volume controlled. The HDMI ARC input makes it easy to connect TVs and control them conveniently.



Specifications:

Pre-Amp (Pre-Out)

Input resistance 3.4 kΩ
Output resistance 470 Ω
Amplification Factor 1
THD < 0.001%
Signal-to-noise ratio > 100dB
Frequency response (at -3dB) < 5Hz to > 80kHz
Crosstalk Attenuation (Channels) > 95dB
Crosstalk Alternation (Inputs) > 85dB
Input Output (1% THD) V
Output Output (1% THD) V

Pre-Amp (Line-Out)

Output resistance 47 Ω
Amplification Factor 1
THD < 0.001%
Signal-to-noise ratio > 100dB
Output Output (1% THD) V

Network

LAN connection (hot-plugging capable) 100Mbit/s
Supported WLAN/ Wifi standards 2.4 / 5 GHz 802.11a/b/g/n/ac
Number of antennas 2
WPS yes

CD player

Playable formats CD Audio, CDR (according to Red Book standard)
Frequency response CD < 20 – 20 kHz

Streaming

Max. sample rates DSD256, 32Bit /384kHz PCM
Streaming Services AirPlay, Qobuz, Roon Ready, Spotify, TIDAL, HighResAudio
Supported file formats: WAV, MP3, WM, AAC, FLAC, ALAC, DSD, Ogg, AIFF

Bluetooth

Bluetooth standard 5.0 LE
Supported Bluetooth Profiles AVRCP 1.5 AD2P

USB Input (Rear)

USB standard USB 2.0
Max. current 500 mA
Supported formatting FAT16, FAT 32, NTFS

ATTENTION: The USB input is only intended for hard drives and USB sticks!

Digital Inputs (S/P-DIF/ Coaxial)

Max. Sampling/Bitrate (OPTO) 96 kHz / 24 Bit
Deemphasis (OPTO) Yes, automatically
Max. Sampling/Bit Rate (COAX) 192 kHz / 24 Bit
Min. signal level [Vpp] at 195kHz (COAX) > 150 mVpp
Input Impedance (COAX) 75 Ω
Deemphasis (OPTO) Yes, automatically
Max. Sampling/Bitrate (ARC) 192 kHz / 24 Bit
Input Impedance 100 Ω

NOTE: When using the digital inputs, the cable length of the digital cables should not exceed three meters.

Digital Outputs (S/P-DIF / Coaxial)

Max. Sampling/Bitrate (OPTO) 96 kHz / 24 Bit
Max. Sampling/Bit Rate (COAX) 192 kHz / 24 Bit
Output Impedance (COAX) 75 Ω

NOTE: When using the digital outputs, the cable length of the digital cables should not exceed three meters.

Power consumption

Standby < 0,5 Watt
Extended stand-by (network connection) < 2 watts
Idle < 16 Watts
Fuse used T 3.15A H

General

Weight 6.9 kg
Dimensions (WxHxD) 430 x 115 x 310
Warranty 2 years (+2 years if you register online*)

*Warranty periods may vary from country to country.
