AVM Audio Rotation R 5.3 MK2

Equipped with a specially designed AVM 10″ tonearm, the ROTATION R 5.3 MK2 features an Elipso Centric Belt Drive with zero tilting moment on the axle. The ROTATION R 5.3 MK2 further sparks a cocktail of cleverly designed and well-built solutions combined with an aesthetically unique appearance where the illuminated acrylic platter and the aluminum-enforced composite frame are only the most striking details.

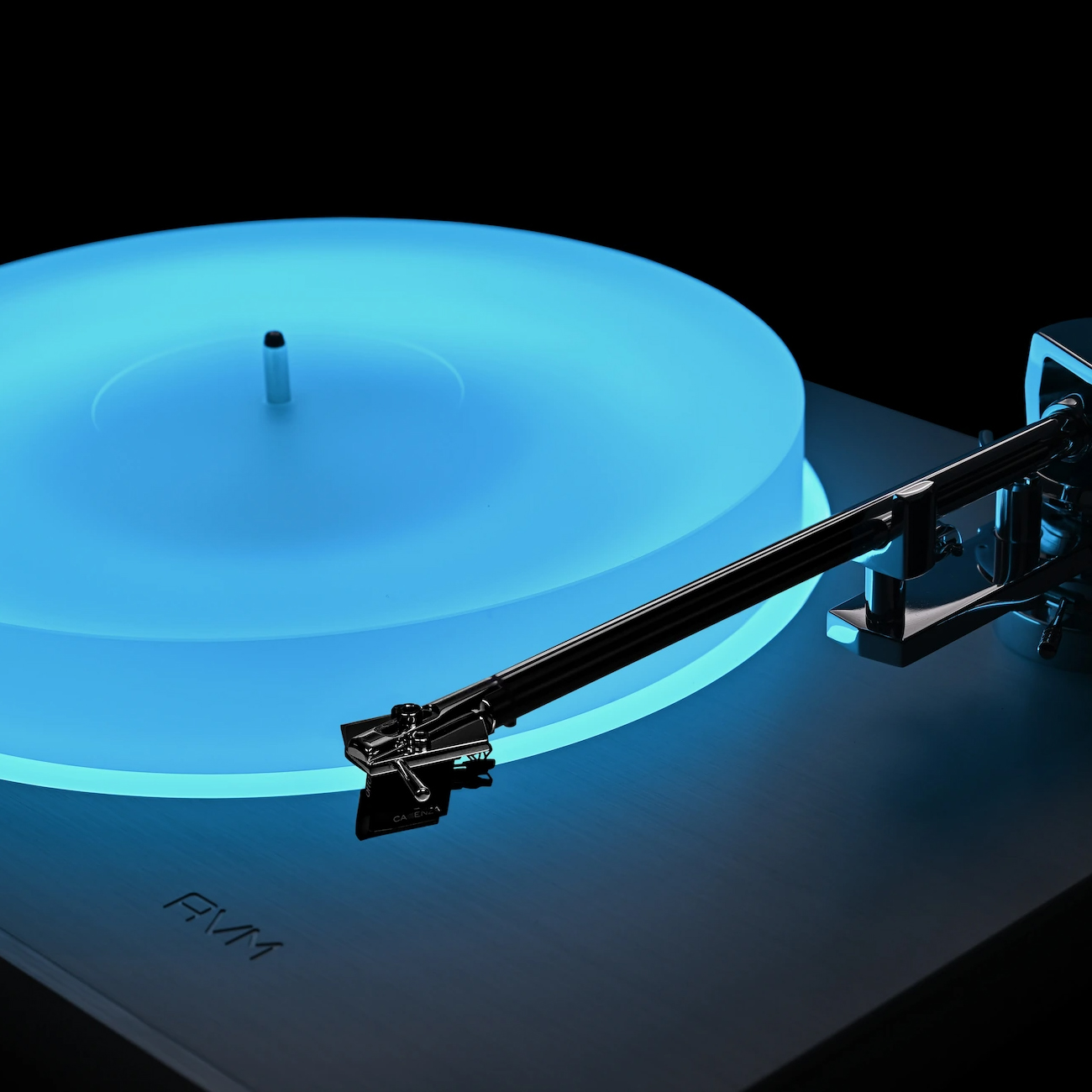

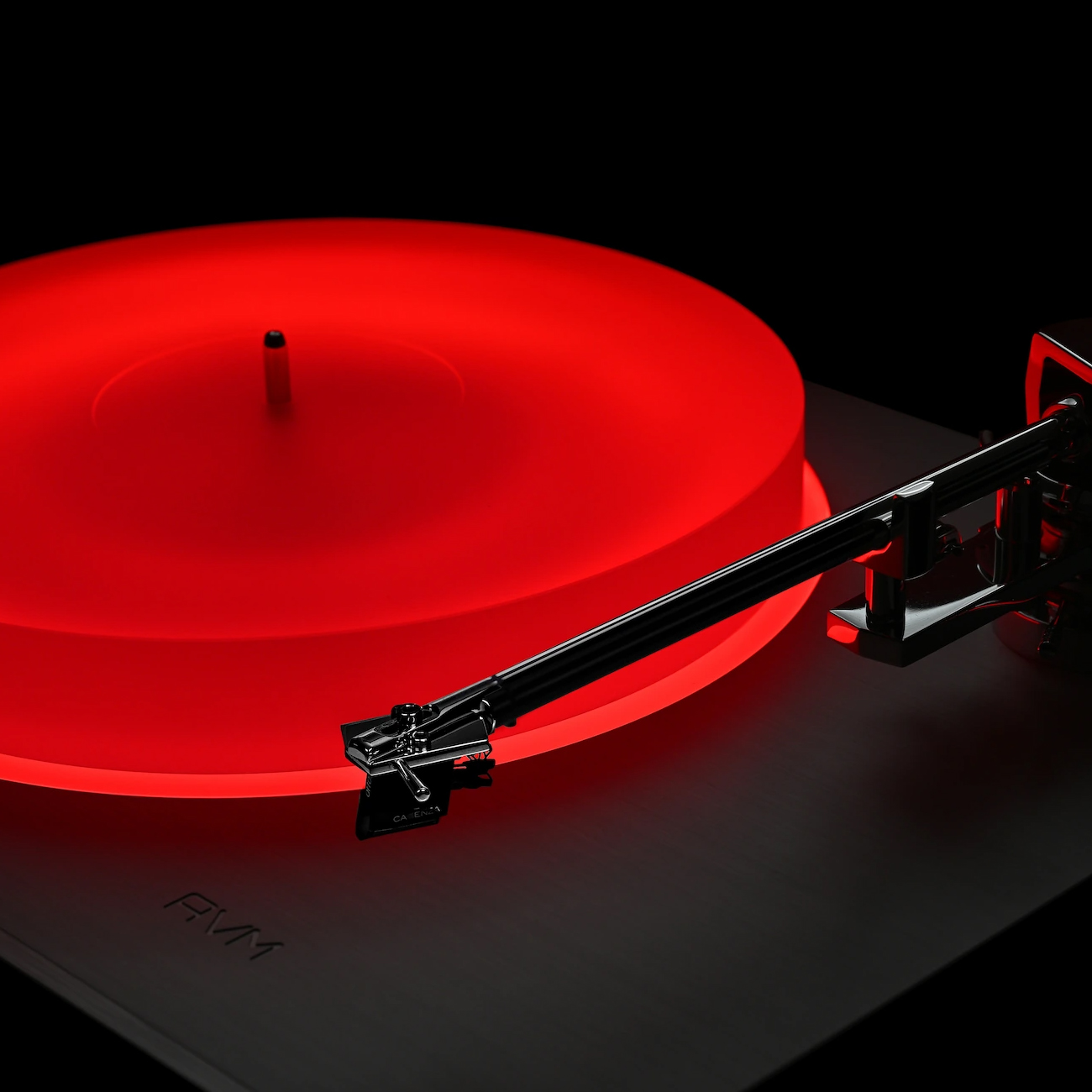

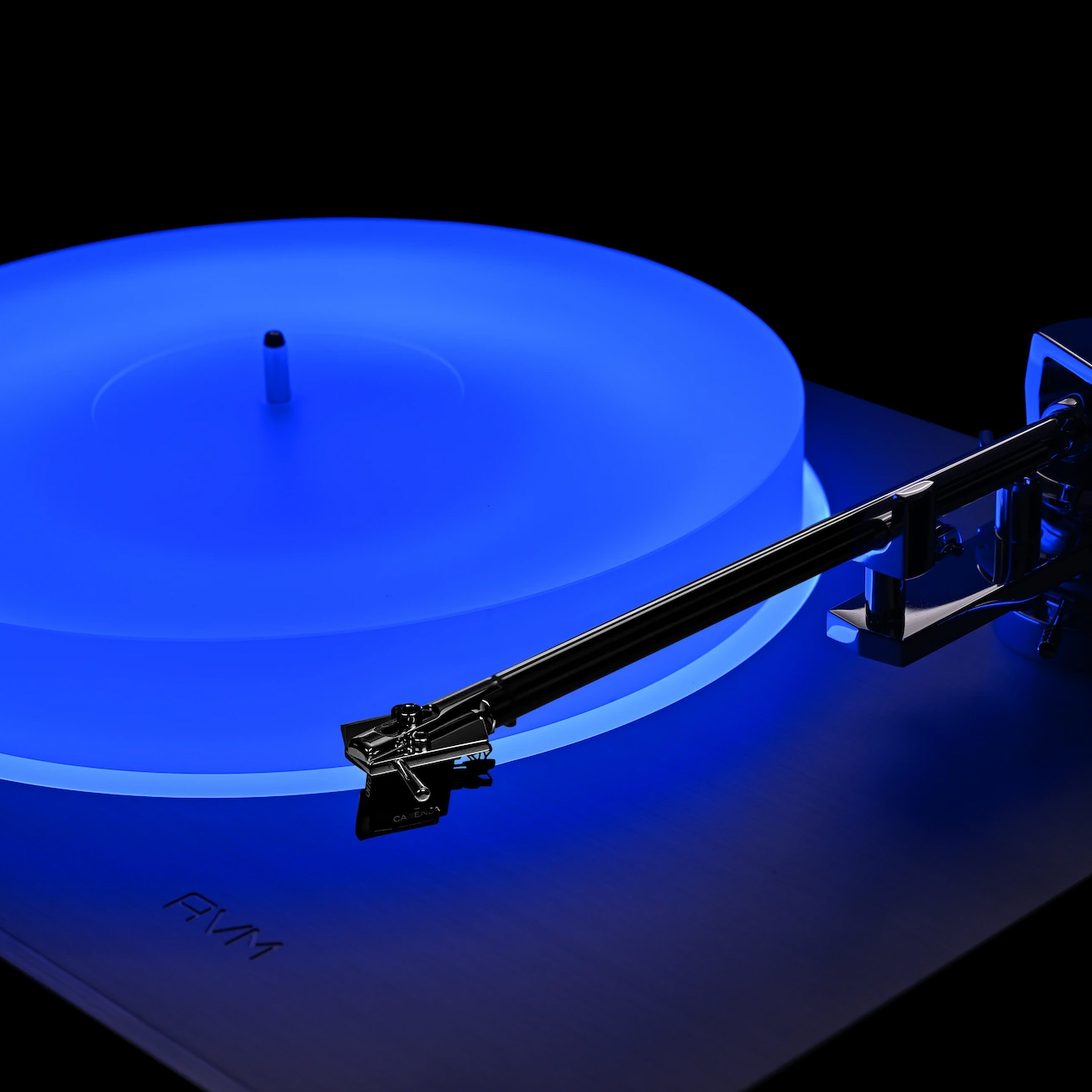

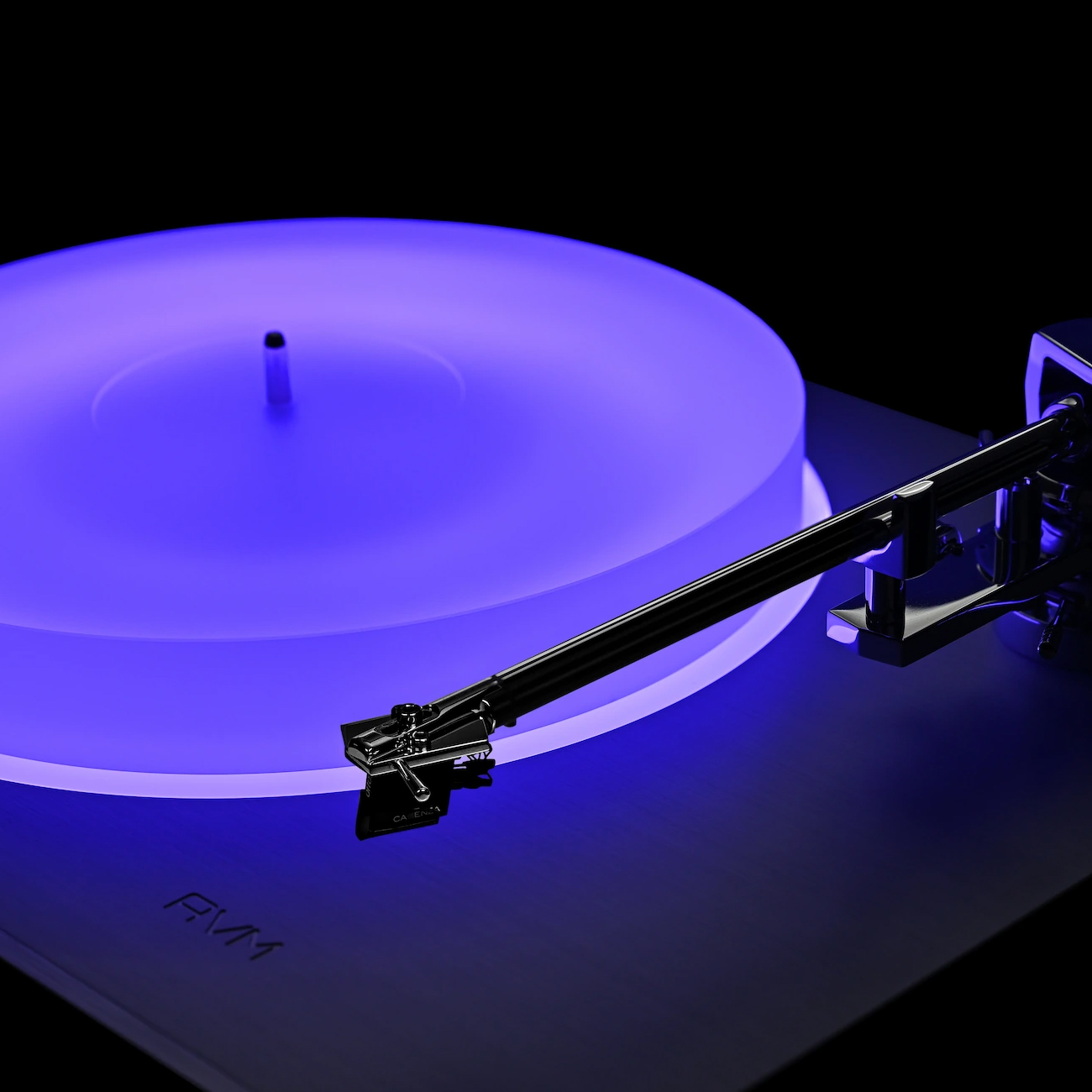

Enhance your listening space with the ROTATION R 5.3 MK2’s brand-new RGB turntable lighting. The included remote gives you complete control over the ambiance, allowing you to easily set the perfect color, dim the light, or turn it off for the ultimate personalized listening experience.

Creating a purely analog source based on AVM’s in-house developments by meeting the highest demands was already a long-cherished dream and from the very beginning a matter for AVM owner & managing director Udo Besser. The development of these two purely handcrafted turntables was accompanied by a new, more sophisticated, and purely phono preamplifier: The compact P30 Phono Stage or the modular OVATION PH 8.3 Flagship Phono Stage. Simultaneously, AVM introduces upgrades already for all the renowned phono stages in various AVM products. Both the ROTATION R 2.3 MK2 and the ROTATION R 5.3 MK2 flagship model feature completely own tone arms exclusively designed by AVM.

Specifications:

Analog Outputs
1 x RCA

Effective Tonearm Mass
15 g

Effective Tonearm Length
254 mm

Signal to Noise
-72 dB

Overhang
16 mm

Downforce Range
0 – 35 mN, 0 – 3.5 g

Supplied Counterweight
For cartridges 6 – 16 g

Headshell
0,5‘‘ (12,7 mm) Standard

Speed Variance
33rpm: ± 0.12 % max, 45rpm: ± 0.10 % max

Wow and Flutter
33rpm: ± 0.10 % max, 45rpm: ± 0.09 % max

Mounting Distance
238 mm (Platter – Tonearm Base, Linn Standard Mount)

Nominal Speed
33/45 rpm, electronic speed change (microprocessor-controlled)

Power Consumption
15 V DC/1.6 A (100-240 V AC, 47 – 63Hz)

Product Dimensions
390 x 470 x 175 mm (L x W x H)

Product Weight
17 kg (Chassis: 12 kg, Platter: 5 kg)
