AVM Audio CS 30.3

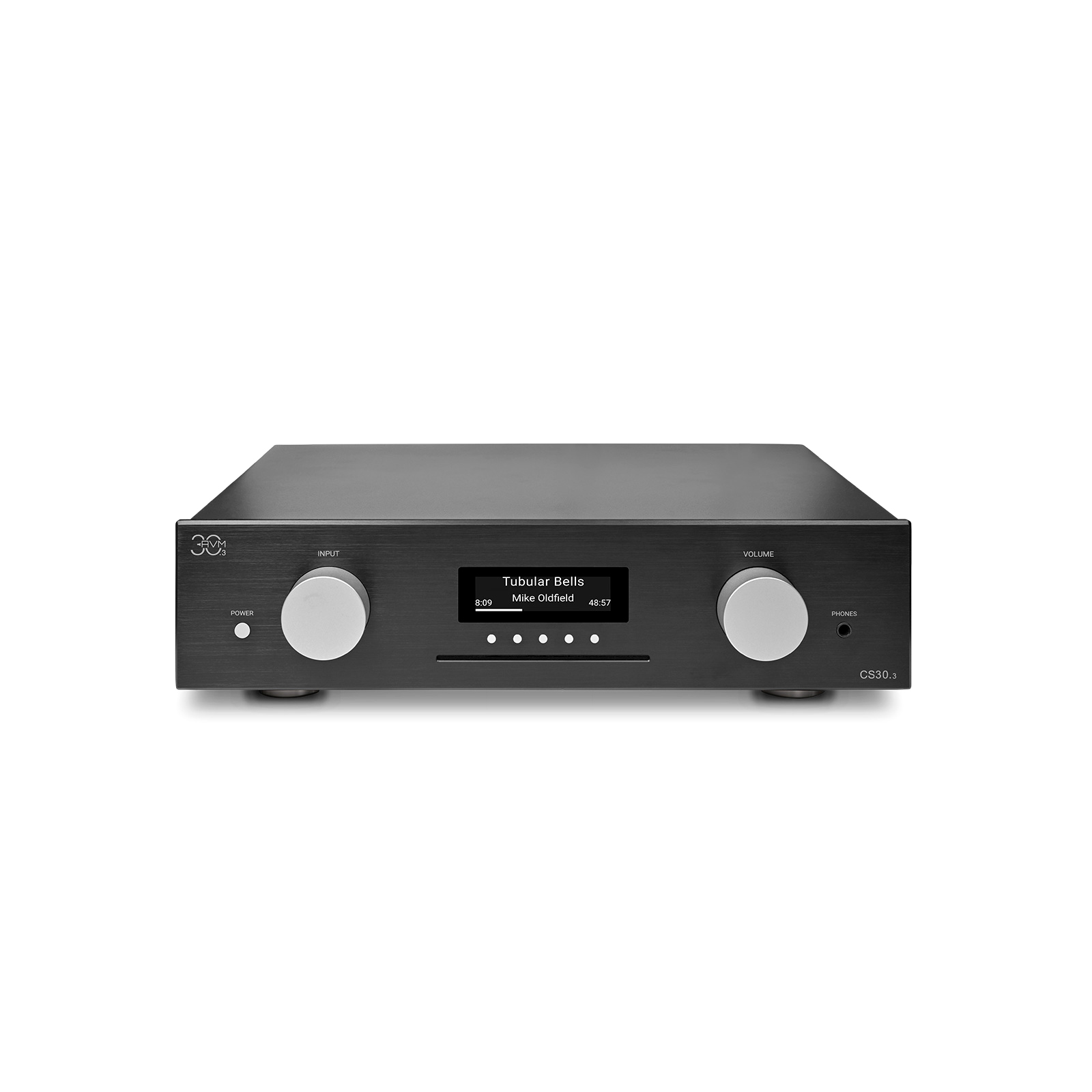

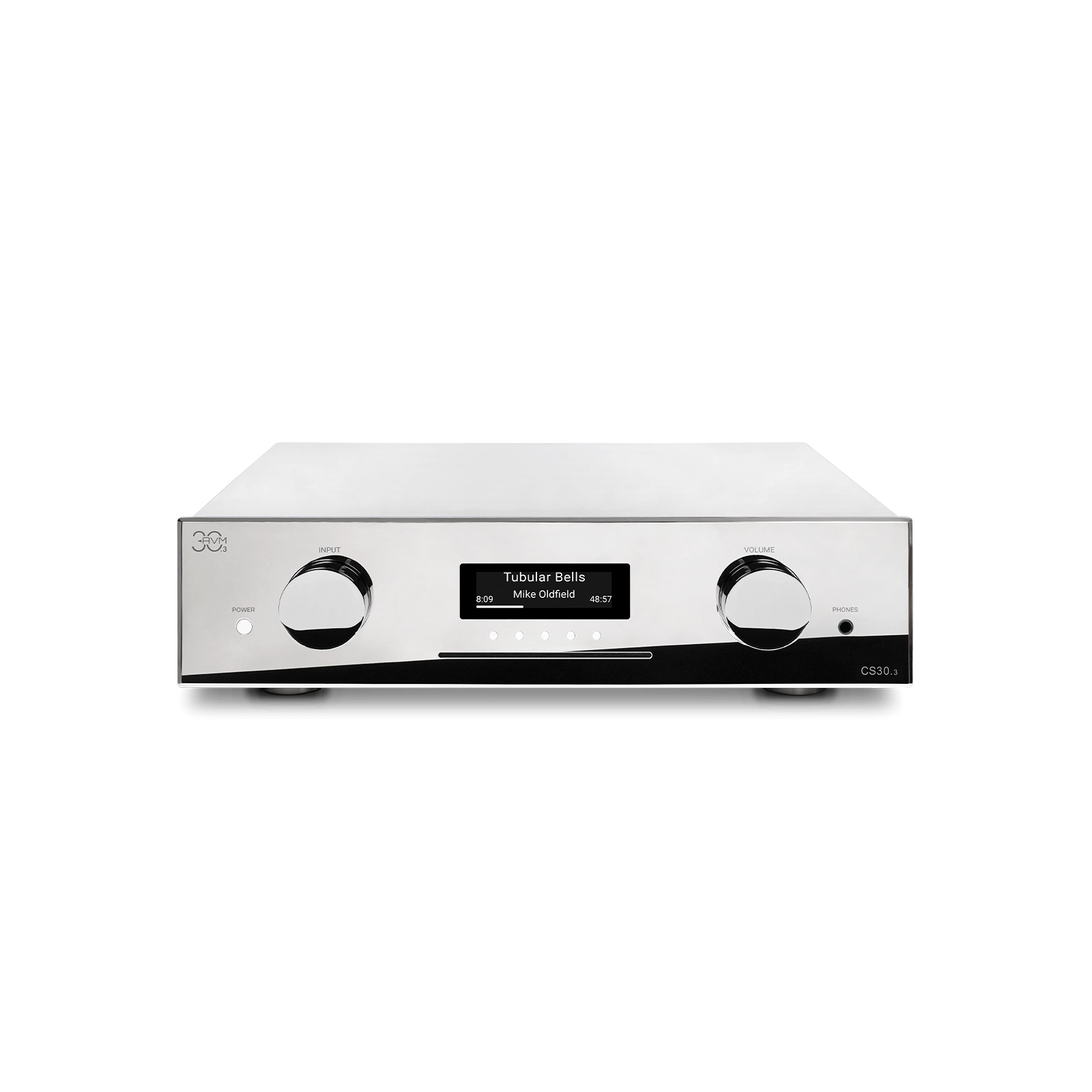

A modern all-in-one: CS 30.3

In the tradition and with our accumulated experience since the 1990s to develop compact all-in-one devices without compromise in terms of sound, the new high-performance All-in-One CS 30.3 has been created on the basis of the AVM X-Stream Engine® . Numerous new features have been incorporated into this 30.3 device and the new RCX APP also controls the CS 30.3 completely. Device towers and overflowing cable clutter become superfluous, all modern connections are available, so that even a TV can be connected via HDMI ARC. In order to achieve our goal of creating one of the most powerful sounding machines on the world market with this compact all-in-one, we have designed proven sound technologies into a shapely, screwless precision housing.

The main focus was on a completely modernized APP control system. The RC-X app clearly contains all important functions. The simplest, intuitively learnable operation as well as a clear and nicely designed user interface make the management of even large music collections child’s play. This makes you want to explore new music on numerous streaming platforms. The AVM RC-X app is available for iOS (Apple) or Android-controlled devices. In addition, basic functions can also be controlled via the included RC3 Full Aluminium remote control.

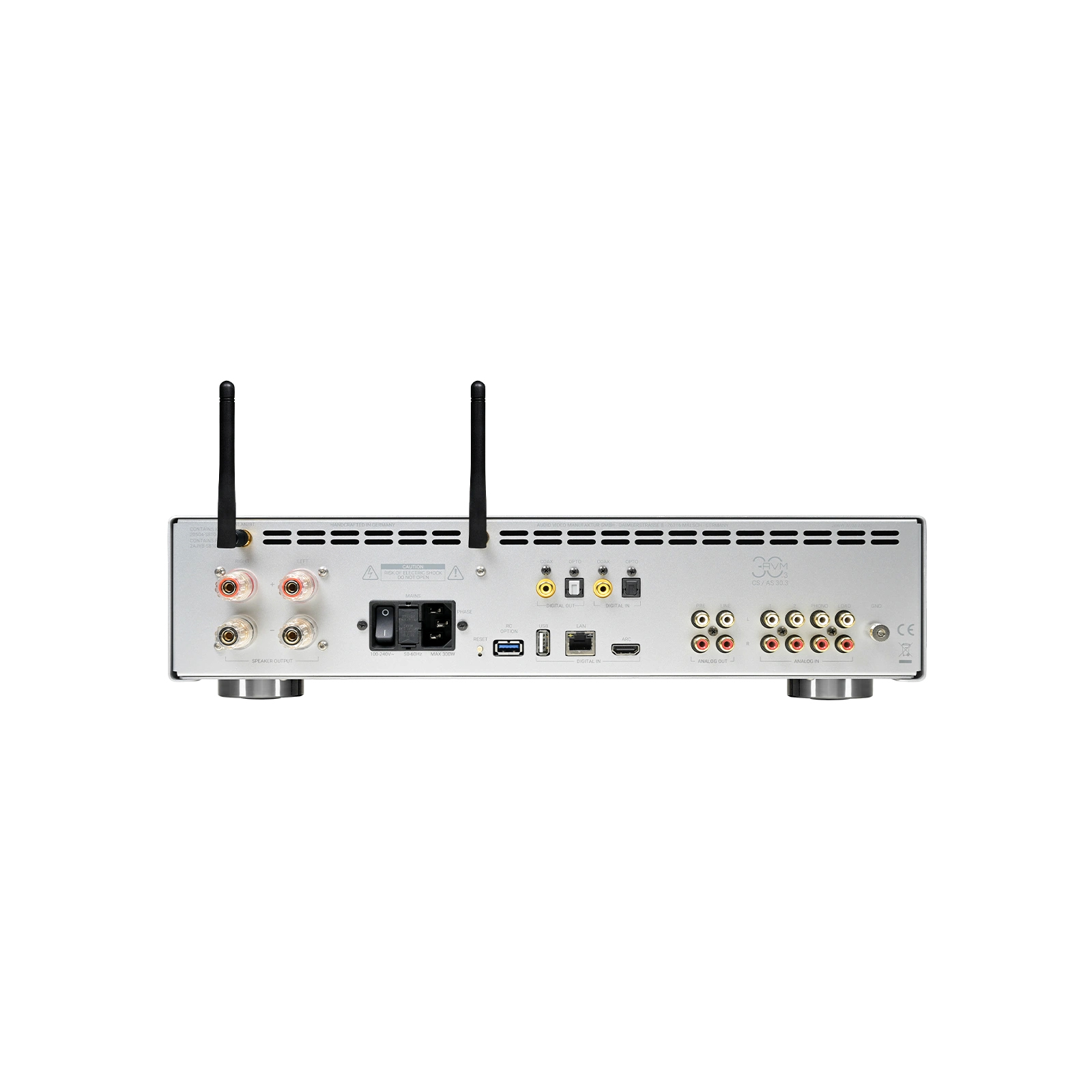

The new AVM X-Stream Engine® can stream all high-resolution formats, including DSD (256). Our streaming engine is a complete in-house AVM development and is completely software-based, so it can be updated online in a future-proof manner. An HDMI (ARC) interface is also on board as well as the modern Bluetooth connection, further digital inputs and a USB A interface are standard. Special attention was paid to the high-performance phono input stage for MM and MC. This high-precision input stage has been completely redesigned for the CS 30.3. This ensures even better sound, especially in combination with our rotation turntables. Completely new are the digital outputs, which can also be volume controlled. The HDMI ARC input makes it easy to connect TVs and control them conveniently.

The CS 30.3 has also made a big leap in terms of sound. This sonic advancement is based on the use of a 125W amplifier stage, which effortlessly drives even power-hungry speakers at all volumes. The new amplifier stages are based on the large CS 8.3 and have been optimized for use in the CS 30.3 housing.



Specifications:

Power amplifier

Amplification factor 30
Distortion factor < 0.005%
Signal-to-noise ratio > 95dB
Input sensitivity 275 mV
Frequency response (at -3dB) < 5Hz to > 80kHz
Output power (1% THD, 4 Ohm, 2 channel) 2 x 125W

Pre-output

Input resistance 3.4 kΩ
Output resistance 470 Ω
Amplification factor 1
DISTORTION FACTOR < 0.001%
Signal-to-noise ratio > 100dB
Frequency response (at -3dB) < 5Hz to > 80kHz
Crosstalk attenuation (channels) > 95dB
Crosstalk attenuation (inputs) > 85dB
Max. Input level (1% THD) V
Max. Output level (1% THD) V

Line-Out

Output resistance 47 Ω
Amplification Factor 1
THD < 0.001%
Signal-to-noise ratio > 100dB
Max. Output level(1% THD) V

Headphone-Out

Output resistance 80 Ω
Amplification factor 4
THD < 0.001%
Signal-to-noise ratio > 100dB
Max. Output level (1% THD) V

Phono Pre-Amp

Equalization RIAA < 0.2dB
Gain MM 40dB
Signal-to-noise ratio MM > 83dB(A)
Gain MC 60dB
Signal-to-noise ratio MC >74dB(A)
Input control MM (1% THD) mV
Input control MC (1% THD) mV

CD-Player

Playable formats CD Audio, CDR (according to Red Book standard)
Frequency response CD < 20 – 20 kHz

Network

LAN connection (hot-plugging capable) 100Mbit/s
Supported Wifi Standards 2.4 / 5 GHz 802.11a/b/g/n/ac
Number of antennas 2
WPS yes

Streaming

Max. sample rates DSD256, 32Bit/384kHz PCM
Streaming Services AirPlay, Qobuz, Roon Ready, Spotify, TIDAL, HighResAudio
Supported file formats: WAV, MP3, WM, AAC, FLAC, ALAC, DSD, Ogg, AIFF

Bluetooth

Bluetooth-Standard 5.0
Supported Bluetooth Profiles AVRCP 1.5 AD2P

USB-INPUT (Backside)

USB-Standard USB 2.0
Max. Strom 500 mA
Supported formatting FAT16, FAT 32, NTFS

ATTENTION: The USB input is only intended for hard drives and USB sticks!

Digital Inputs (S/P-DIF/ Coaxial)

Max. Abtast-/ Bitrate (OPTO) 96 kHz / 24 Bit
Deemphasis (OPTO) Yes, automatically
Max. Abtast-/ Bitrate (COAX) 192 kHz / 24 Bit
Min. signal level [Vpp] at 195kHz (COAX) > 150 mVpp
Input Impedance (COAX) 75 Ω
Deemphasis (OPTO) Yes, automatically
Max. Abtast-/ Bitrate (ARC) 192 kHz / 24 Bit
Input Impedance 100 Ω

NOTE: When using the digital inputs, the cable length of the digital cables should not exceed three meters.

Digital Outputs (S/P-DIF / Coaxial)

Max. Sampling-/ Bitrate (OPTO) 96 kHz / 24 Bit
Max. Sampling-/ Bitrate (COAX) 192 kHz / 24 Bit
Output Impedance (COAX) 75 Ω

NOTE: When using the digital outputs, the cable length of the digital cables should not exceed three meters.

Power consumption

Standby < 0,5 Watt
Extended stand-by (network connection) < 2 watts
Idle < 16 Watts
Fuse used T 3.15A H

General

Weight 7.1 kg
Dimensions (WxHxD) 430 x 110 x 325
Warranty 2 years (+ 2 years if you register online*)

*Warranty periods may vary in other countries of distribution.
