S/5 SHO represents the pinnacle of mid-level sub bass systems, combining our most innovative engineering to produce reference-quality sound in a stunningly sophisticated package.
The NEW S/5 SHO
THE SERIE S FLAGSHIP
S/5 SHO (Super High Output) exceeds the mandate for mid-level models and crosses this model into near reference quality. S/5 SHO’s 15” Continuous CastTM Alloy Cone Driver and carbon passive radiator produces exceptionally low bass with tremendous impact and speed. Its NextGen2 550W digital amplifier makes large scale, high-end 2-channel systems and grand theaters a perfect pairing. Medium to grand rooms are more than appropriate as scale is very large, speed is exceptional, and attack and slam is visceral.
SHO refers to Super High Output, made possible by a new 3-stage limiter our engineers created after extensive testing revealed that much higher output, higher gain and higher performance could be unlocked. The result is a new design that is capable of more than doubling its predecessor’s output. Specify the S/5 SHO, singly or in pairs, when your system is of exceptionally high quality, and your speakers and room can support high levels of dynamics and bass extension.
Smooth Speed & Slam
CONTINUOUS CAST™ CONE BASS ENGINE
S/5 SHO’s driver features an all-new alloy cone structure that takes our mid-level product to a performance that exceeds our reference products of only a few years ago. By reducing moving mass, with a balanced approach to design, our engineering team was able to produce far more speed than prior designs. By carefully adjusting key parameters, we were able to increase the self-quieting key to a high end component’s ability to resolve space and inner detail. Improvements in our designs translate into enhancement in your entire system.
Sound Beyond Its Size
CARBON PASSIVE RADIATOR
S/5 SHO uses a special carbon/carbon passive that is stiff, lightweight and incredibly well-behaved. Our approach to passive design results in performance more akin to a variable ratio driver size. On an S/5 SHO, think of it as a sliding ratio design wherein the S/5 SHO begins as an ultra-fast 12” sealed box design and, as more power and deeper bass is demanded, the S/5 SHO gradually morphs into the power and output of a 15” design.
Fast, Extended Lows
NEXTGEN2 550W DIGITAL AMPLIFIER
Beyond our proprietary drivers, the performance of a REL is determined by our unique input filters and amplifiers. S/5 SHO uses a simple filter-type that is very fast—about 8 milliseconds in group delay– to cross out unwanted higher frequencies to our driver. This speed and our carefully sorted filters allow for seamless blending of RELs with the main speakers. RELs do not include a high pass filter to cross out bass from the main speaker because to do so would generally produce more unwanted effects than the minor benefits such a design confers.
S/5 SHO’s power amplifier is a powerful NextGen2 550W digital amplifier. This design has powered thousands of RELs and has proven exceptionally reliable and very fast with deep, extended lows—it provides a perfect mate to our new driver.
LONGBOW™ WIRELESS CONNECTIVITY
LongBow permits very fast, uncompressed bass to be sent wirelessly within the same room approximately 45 feet (somewhat dependent upon room clutter). We have selected an un compressed format as it results in natural, quick delivery compared with conventional wi-fi or Bluetooth systems. Because it is a REL, we developed LongBow with both high level (or low level with crossover intact) AND .1 channel delivery so that REL Theatre Reference performance can be maintained even when using our wireless delivery system.
Front-firing active driver, down-firing passive
ACTIVE DRIVER SIZE & MATERIAL
12 in., 300mm long-throw, Continuous CastAlloy™ cone structure, cast chassis
PASSIVE RADIATOR SIZE & MATERIAL
12 in., 300mm Carbon/Carbon flat cone structure, steel chassis
LOW FREQUENCY EXTENTION
-6dB at 20 Hz

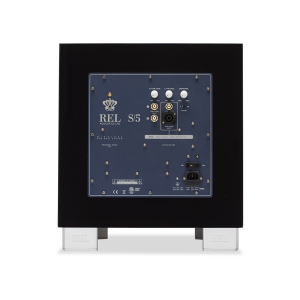

High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, SMA for wireless antenna
550 watts (RMS)
NextGen2 Class D
Longbow (Optional), Zero Compression, Individual discrete D/A and A/D Encoders
FULLY ELECTRONIC SET SAFE
MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets
5 Amp 220 volts operation, 9 Amp 120 volts operation
W X H X D
17.5 x 18 x 20 in. (444.5 x 455.5 x 507 mm)
69.7 lbs. (31.6 kg)
Piano Black Lacquer, White Lacquer, 8 coats
Yes (10 Meters Nominal)
